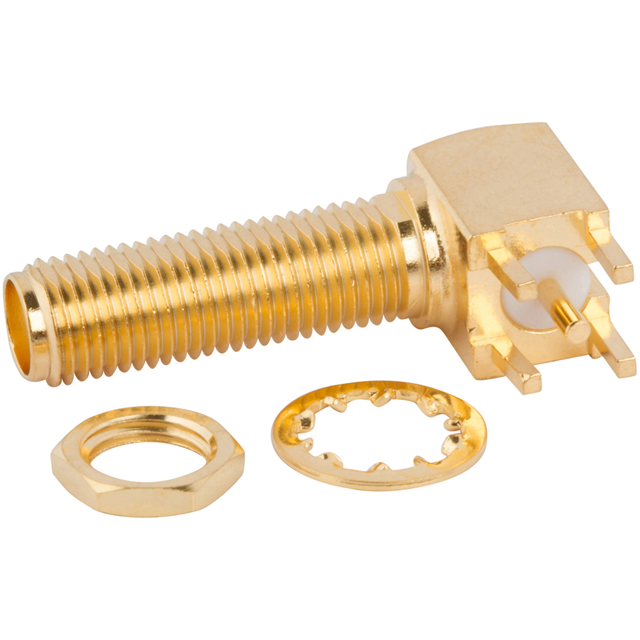

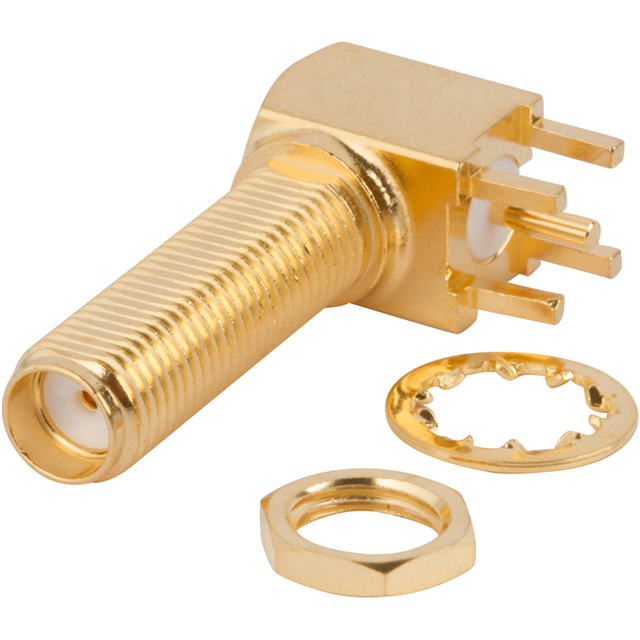

132203-16 Amphenol RF 132203-16 Amphenol RF
Same model may have multiple batches, images only for reference.
132203-16 Amphenol RF 132203-16 Amphenol RF
132203-16 Amphenol RF 132203-16 Amphenol RF
Same model may have multiple batches, images only for reference.

132203-16

Part No 132203-16
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description SMA RIGHT ANGLE PCB JACK, THROUG
Datasheet
132203-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol RF
Packaging Bulk
Part Status Active
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount, Through Hole, Right Angle
Number of Ports 1
Operating Temperature -65°C ~ 165°C
Ultra Librarian 3D Model Ultra Librarian 132203-16 CAD Model

Description

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
