Same model may have multiple batches, images only for reference.

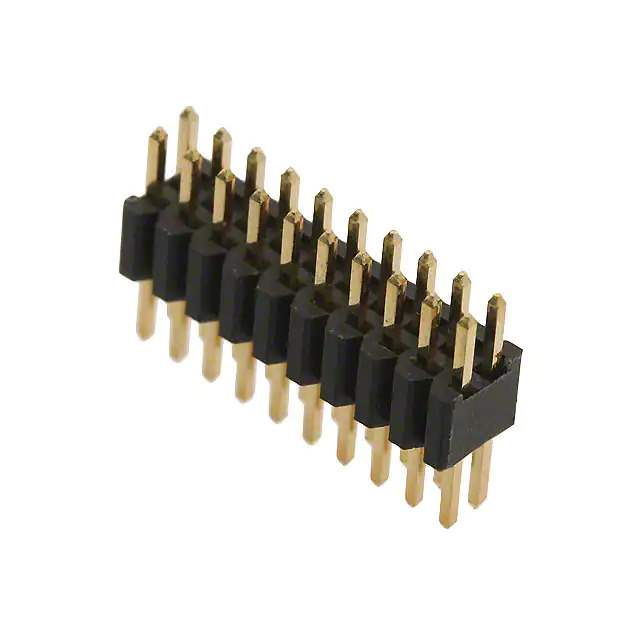

20021111-00020T4LF Real Image
Same model may have multiple batches, images only for reference.

20021111-00020T4LF

Part No 20021111-00020T4LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 1.27MM / Connector Header Through Hole 20 position 0.050" (1.27mm)
Datasheet
20021111-00020T4LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Minitek127® 1.27mm
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.309" (7.86mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 20021111
Standard Package 46 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 844941-20021111-00020T4LF
Ultra Librarian 3D Model Ultra Librarian 20021111-00020T4LF CAD Model

Description

The Minitek127® 1.27mm series headers from Amphenol are reliable and versatile connectors for various electronic applications.

  • Number of Positions: 20
  • Pitch: 1.27mm
  • Contact Type: Male Pin
  • Contact Loading: All Positions Loaded
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 125VAC
  • Current Rating: 1A per contact
  • Style: Shrouded, Unshrouded
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Amphenol
  • Product Status: Active
