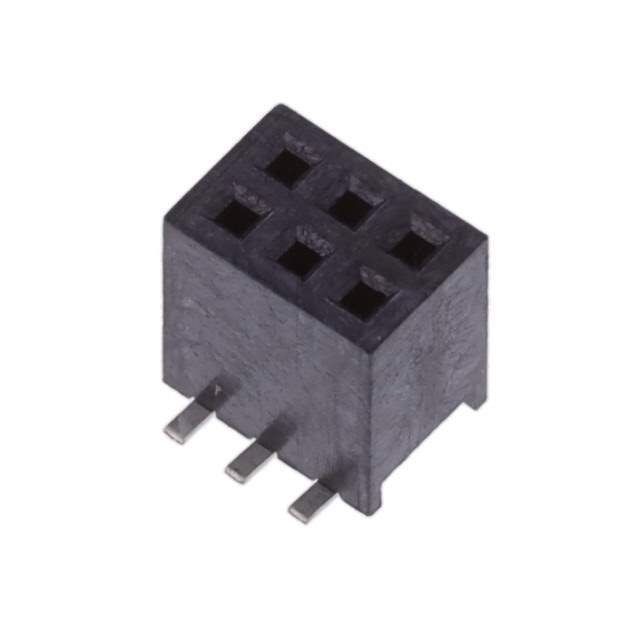

Same model may have multiple batches, images only for reference.

20021321-00006T4LF

Name: 20021321-00006T4LF
Brand: Amphenol
SKU: 1135904
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	20021321-00006T4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.05 GOLD SMD / 6 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 1.27mm
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Applications	General Purpose, Industrial, Telecommunications
Insulation Material	Plastic
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	20021321
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	137
Win Source Part Number	1135904-20021321-00006T4LF
Ultra Librarian 3D Model	Ultra Librarian 20021321-00006T4LF CAD Model

Alternative Products

Description

This rectangular connector is manufactured by Amphenol ICC (FCI) and has a Win Source Part Number of 1135904-20021321-00006T4LF.

Series: Minitek127® 1.27mm
Positions: 6
Connector Type: Receptacle
Contact Type: Female Socket
Termination: Solder
Fastening Type: Push-Pull
Mounting: SMD (SMT)
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
Contact Finish-Post: Tin with a thickness of 100.0µin (2.54µm)
