Same model may have multiple batches, images only for reference.

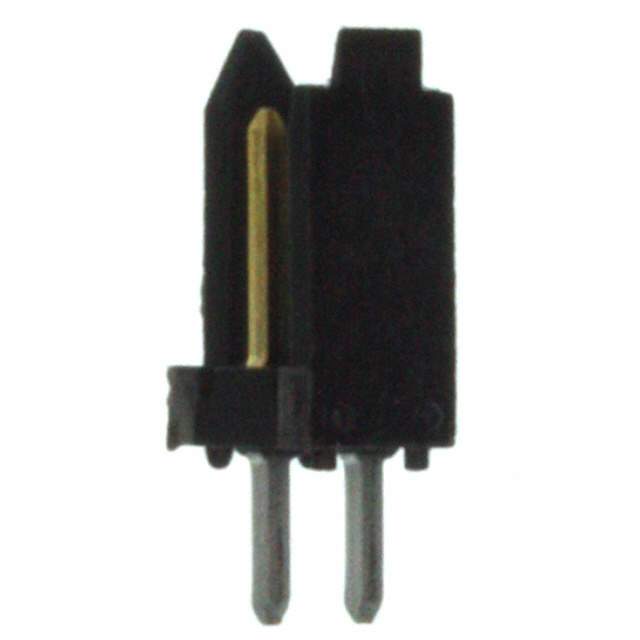

76384-302LF Real Image
Same model may have multiple batches, images only for reference.

76384-302LF

Part No 76384-302LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.197" (5.00mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.411" (10.44mm)
Insulation Height 0.368" (9.35mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 76384
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1304,76384302LF
Standard Package 500
Win Source Part Number 1164060-76384-302LF
Ultra Librarian 3D Model Ultra Librarian 76384-302LF CAD Model

Description

The Amphenol ICC (FCI) 76384-302LF Dubox™ connector is a male pin header with 2 positions loaded and 1 row.

  • Series: Dubox™
  • Type: Header
  • Gender: Male
  • Positions Loaded: 2
  • Rows: 1
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.100" (2.54mm)
  • Mounting: Through Hole
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold, GXT™
  • Contact Finish (Post): Tin
  • Insulation Material: Thermoplastic, Glass Filled
  • Insulation Color: Black
  • REACH: Unaffected
  • ECCN: EAR99
