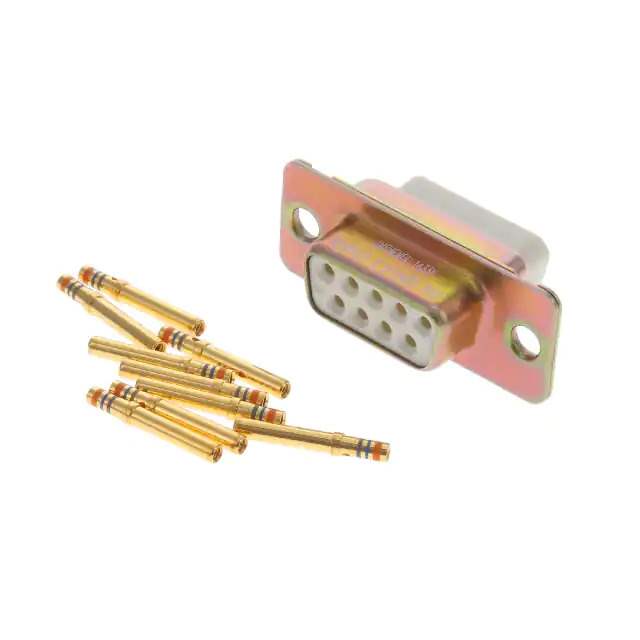

M24308/2-1F Real Image
Same model may have multiple batches, images only for reference.

M24308/2-1F

Part No M24308/2-1F
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description DSUB CONN,CRIMP, SOCKET, CADMIUM / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol
Series Military, MIL-C-24308, M24308
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Crimp
Shell Material, Finish Steel, Yellow Cadmium Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Color Natural
Contact Form Machined
Dielectric Material Polyester, Glass Filled
Wire Gauge 20-26 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number M24308/2
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 924743-M24308/2-1F
Ultra Librarian 3D Model Ultra Librarian M24308/2-1F CAD Model

Description

The Amphenol 924743-M24308/2-1F is a D-Sub connector assembly from the Military, MIL-C-24308, M24308 series.

  • Series: Military, MIL-C-24308, M24308
  • Positions: 9
  • Contact Type: Signal
  • Connector Type: Receptacle
  • Socket Type: Female Sockets
  • Termination: Crimp
  • Contact Finish: Gold
  • Connector Material: Steel
  • Plating Finish: Yellow Cadmium
  • Current Rating: 7.5A
  • Temperature Range: -55°C to 125°C
