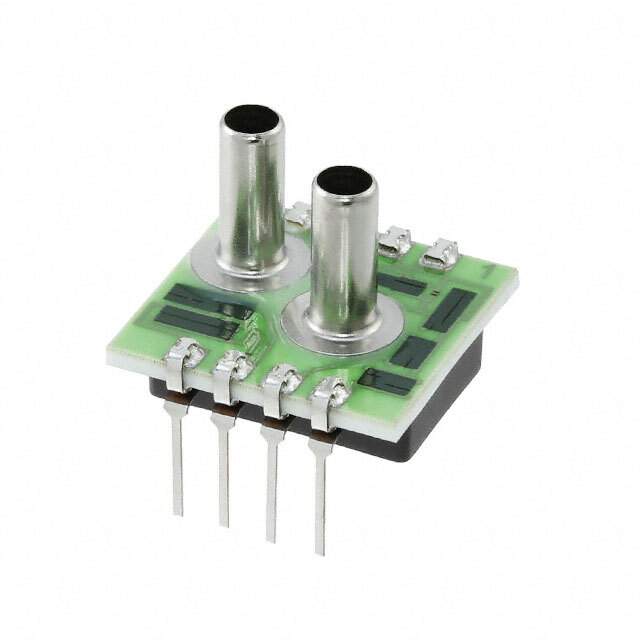

Same model may have multiple batches, images only for reference.

NPC-1210-015D-3-S

Name: NPC-1210-015D-3-S
Brand: Amphenol
SKU: 1336612
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	NPC-1210-015D-3-S
Manufacturer	Amphenol
Catalog	Pressure Sensors, Transducers
Description	SENSOR PRES 15PSIA 0-100MV DIP / Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.13" (3.23mm) Tube, Dual 0 mV ~ 100 mV 8-DIP Module
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer	Amphenol NovaSensor
Packaging	Bulk
Applications	Board Mount
Pressure Type	Differential
Operating Pressure	15PSI (103.42kPa)
Output Type	Wheatstone Bridge
Output	0 mV ~ 100 mV
Accuracy	±0.1%
Port Size	Male - 0.13" (3.23mm) Tube, Dual
Port Style	Barbless
Features	Temperature Compensated
Termination Style	PC Pin
Maximum Pressure	45PSI (310.26kPa)
Temperature Range - Operating	-40°C ~ 125°C
Case / Package	8-DIP Module
Base Product Number	NPC-1210
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	9026.20.4000
Other Part Number	235-1389-ND,45-NPC-1210-015D-3-S,235-1389,NPC-1210-015D-3-S-ND
Standard Package	1
Win Source Part Number	1336612-NPC-1210-015D-3-S
Ultra Librarian 3D Model	Ultra Librarian NPC-1210-015D-3-S CAD Model

Description

The Amphenol NovaSensor 1336612-NPC-1210-015D-3-S is a pressure sensor that falls under the category of sensors and transducers.

Temperature Compensation: Yes
Output Type: Wheatstone bridge
Output Range: 0 mV to 100 mV
Accuracy: ±0.1%
Pressure Type: Differential
Operating Pressure: 15PSI (103.42kPa)
Maximum Pressure: 45PSI (310.26kPa)
Temperature Range: -40°C to 125°C
Case/Package: 8-DIP module
RoHS Compliant: Yes
ECCN: EAR99
