Same model may have multiple batches, images only for reference.

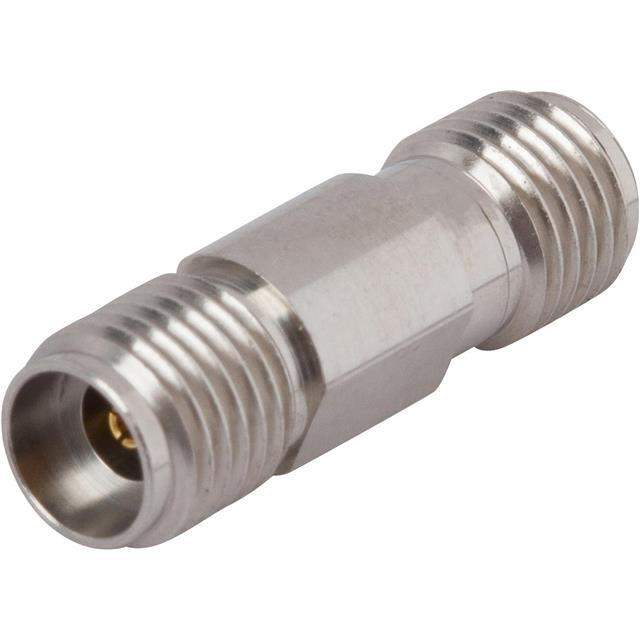

SF1590-6000 Real Image
Same model may have multiple batches, images only for reference.

SF1590-6000

Part No SF1590-6000
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK 2.92MM  /  Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50Ohm
Datasheet
SF1590-6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Amphenol SV Microwave
Series 2.92mm
Package Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series 2.92mm to 2.92mm
Center Gender Female to Female
Convert From (Adapter End) 2.92mm (OS-2.9) Jack, Female Socket
Convert To (Adapter End) 2.92mm (OS-2.9) Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 40 GHz
Center Contact Plating Gold
Body Material Stainless Steel
Center Contact Material Beryllium Copper
Dielectric Material Polyetherimide (PEI)
Mating Cycles 500
Base Product Number SF1590
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 25
Win Source Part Number 1125956-SF1590-6000
Ultra Librarian 3D Model Ultra Librarian SF1590-6000 CAD Model

Description

This coaxial connector adapter is part of the 2.92mm series.

  • Conversion: 2.92mm (OS-2.9) jack, female socket to a 2.92mm (OS-2.9) jack, female socket
  • Frequency Range: Up to 40GHz
  • Impedance: 50 ohms
  • Adapter Type: Jack to Jack
  • Adapter Series: 2.92mm to 2.92mm
  • Center Gender: Female to Female
  • Conversion Type: Same Series
  • Mounting: Free Hanging (In-Line)
  • Packaging: Bulk
  • Popularity: Medium
  • Counterfeit Threat: 56%
