Same model may have multiple batches, images only for reference.

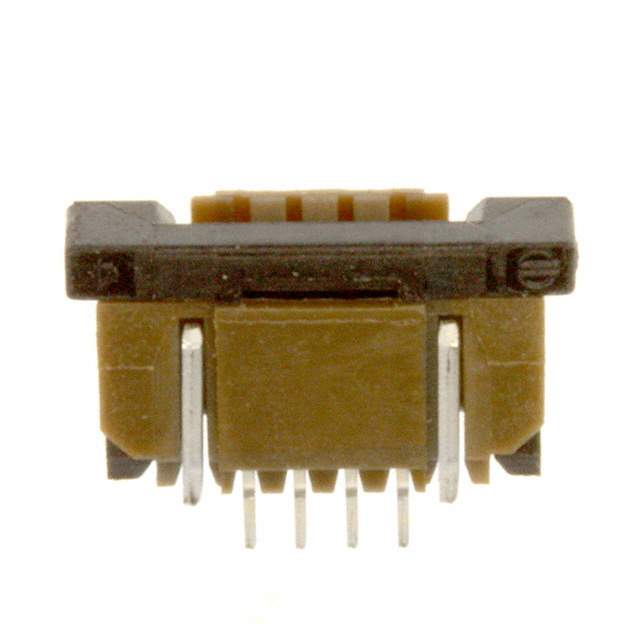

SFW4R-2STAE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW4R-2STAE1LF

Part No SFW4R-2STAE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 4POS 1.00MM R/A  /  4 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Base Product Number SFW4R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-6469-6,SFW4R-2STAE1LF-ND,609-6469-1,609-6469-2
Standard Package 2,000
Win Source Part Number 988554-SFW4R-2STAE1LF
Ultra Librarian 3D Model Ultra Librarian SFW4R-2STAE1LF CAD Model

Description

The Amphenol ICC (FCI) SFW4R-2STAE1LF is a 4-position FFC/FPC connector that belongs to the SFW-R series.

  • Positions: 4
  • Series: SFW-R
  • Pitch: 0.039 inches (1.00mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Package: Tape and Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100V
  • Height Above Board: 0.106 inches (2.70mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: Contacts, Top
  • FFC/FCB Thickness: 0.30mm and 0.33mm
  • Locking Feature: Slide Lock
  • Cable End Type: Straight and Tapered
  • Housing Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Actuator Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Brown
  • Standard Package: 2,000
  • Mating Cycle: 20
  • Mounting Type: Surface Mount, Right-Angle
  • Temperature Range: -55°C to 105°C
  • Actuator Color: Black
  • ECCN: EAR99
  • Current Rating: 1A
  • REACH: Affected
  • HTSUS: 8536.69.4051
  • Base Product Number: SFW4R
