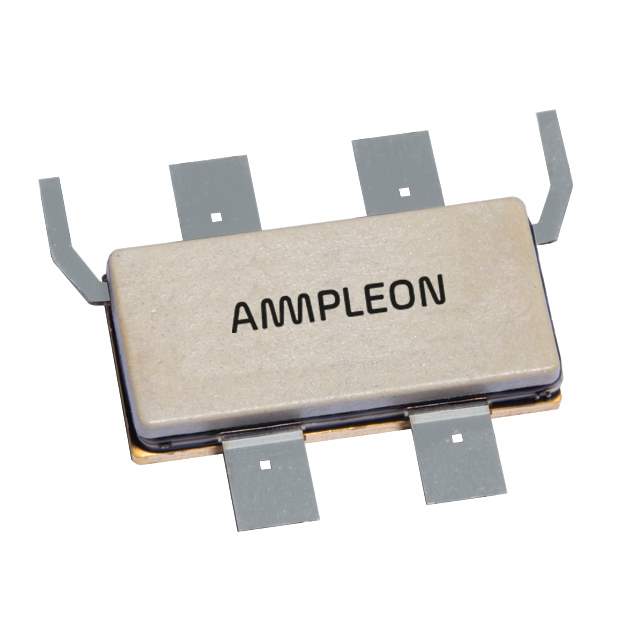

BLC9G24XS-170AVZ Real Image
Same model may have multiple batches, images only for reference.

BLC9G24XS-170AVZ

Part No BLC9G24XS-170AVZ
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 15.5DB SOT12753 / RF Mosfet LDMOS (Dual), Common Source 30 V 250 mA 2.3GHz ~ 2.4GHz 15.5dB 170W SOT-1275-3
Datasheet
BLC9G24XS-170AVZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - RF
Mfr Ampleon USA Inc.
Package Tray
Product Status Obsolete
Transistor Type LDMOS (Dual), Common Source
Frequency 2.3GHz ~ 2.4GHz
Gain 15.5dB
Voltage - Test 30 V
Current - Test 250 mA
Power - Output 170W
Voltage - Rated 65 V
Package / Case SOT-1275-3
Supplier Device Package SOT-1275-3
Base Product Number BLC9
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.29.0075
Other Names 934960037517,1603-1088
Standard Package 20
Win Source Part Number 1049326-BLC9G24XS-170AVZ
Ultra Librarian 3D Model Ultra Librarian BLC9G24XS-170AVZ CAD Model

Description

The Ampleon USA Inc. BLC9G24XS-170AVZ is a high-quality transistor that is designed for use in various electronic circuits.

  • Win Source Part Number: 1049326
  • Voltage Rating: 65 V
  • Frequency Range: 2.3GHz ~ 2.4GHz
  • Current Test: 250 mA
  • Gain: 15.5dB
  • Transistor Type: LDMOS (Dual), Common Source
  • Voltage Test: 30 V
  • Power Output: 170W
  • Package: SOT-1275-3
  • MSL Level: 3 (168 Hours)
  • Product Status: Discontinued
