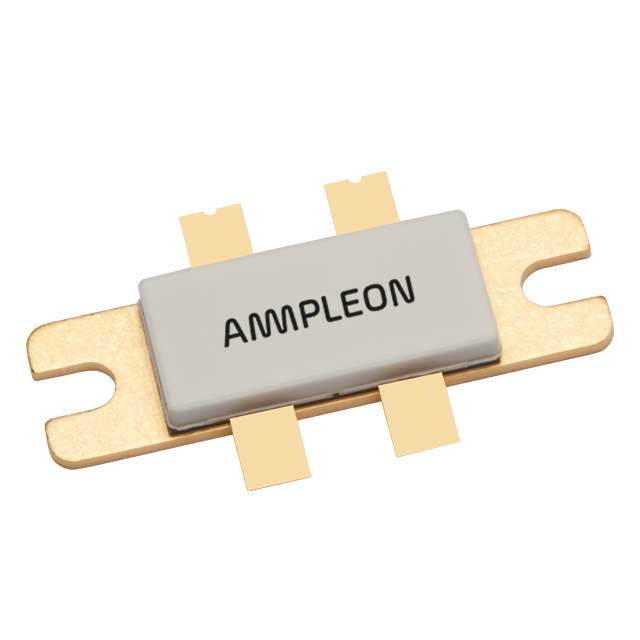

The BLF183XRU is a robust, high-power RF power LDMOS transistor designed for a wide range of applications in the HF to 600 MHz frequency band. Manufactured by Ampleon, this transistor is well-suited for demanding applications requiring high power and reliability.

Applications

• Industrial, Scientific, and Medical (ISM) applications: Used in RF heating, plasma generation, and MRI systems.
• Broadcast Transmitters: Ideal for FM and VHF radio broadcast amplifiers.
• Military Communications: Utilized in high-power communication systems and radar applications.
• Amateur Radio Amplifiers: Employed in high-power linear amplifiers for amateur radio enthusiasts.
• HF to VHF Communications: Suitable for various communication systems within the specified frequency range.

Features

• High Output Power: Delivers significant RF output power, typically up to 180W.
• High Gain: Offers substantial power gain, simplifying amplifier design.
• Wide Frequency Range: Operates efficiently from HF to 600 MHz.
• LDMOS Technology: Provides excellent ruggedness and reliability.
• Integrated ESD Protection: Enhanced protection against electrostatic discharge.
• Excellent Linearity: Ensures low distortion in amplifier applications.
• Thermally Enhanced Package: Designed for efficient heat dissipation.

Benefits

• Increased Power Output: Enables higher signal strength and coverage in broadcast and communication systems.
• Simplified Amplifier Design: High gain reduces the need for complex driver stages.
• Improved System Reliability: Robust LDMOS technology ensures long-term performance.
• Reduced Distortion: Excellent linearity minimizes signal degradation and interference.
• Enhanced ESD Protection: Protects the device from damage during handling and operation.
• Efficient Thermal Management: Thermally enhanced package allows for higher power operation without overheating.

Additional Details

The BLF183XRU operates at a supply voltage typically around 50V. It is designed for Class AB operation to achieve optimal linearity and efficiency. The device is available in a ceramic package optimized for thermal performance and ease of assembly. Proper heat sinking is crucial for reliable operation at high power levels. The BLF183XRU is a lead-free and RoHS-compliant device.

Typical Specifications:

• Frequency Range: HF - 600 MHz
• Output Power: 180 W
• Gain: 21 dB
• Supply Voltage: 50 V
