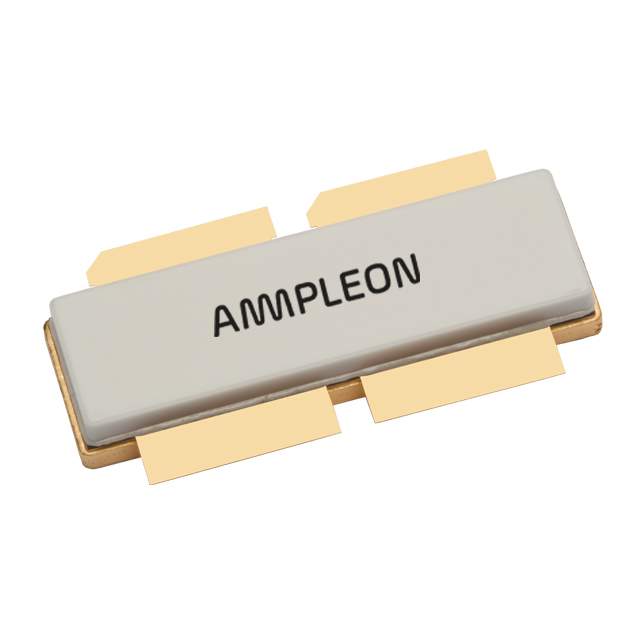

Same model may have multiple batches, images only for reference.

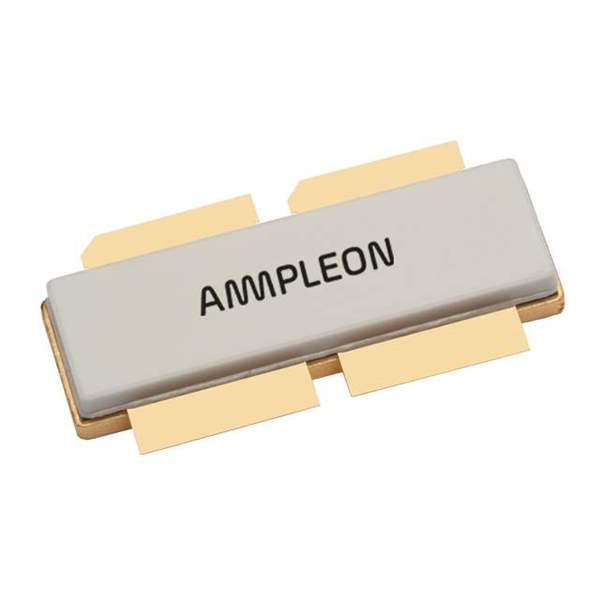

BLF2324M8LS200PU Real Image
Same model may have multiple batches, images only for reference.

BLF2324M8LS200PU

Part No BLF2324M8LS200PU
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 17.2DB SOT539B / Trans RF MOSFET N-CH 65V 5-Pin SOT-539B Bulk
Datasheet
BLF2324M8LS200PU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Ampleon USA Inc.
Packaging Tray
Transistor Type LDMOS (Dual), Common Source
Frequency 2.3GHz ~ 2.4GHz
Gain 17.2dB
Voltage - Test 28V
Current - Test 1.74A
Power - Output 60W
Voltage Rating DC 65V
Package SOT539B
Manufacturer Package SOT539B
Win Source Part Number 770089-BLF2324M8LS200PU
Popularity Medium
Supply and Demand Status Limited
Family Name BLF2324M8LS200P
Introduction Date December 07, 2015
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian BLF2324M8LS200PU CAD Model

Description

The BLF2324M8LS200PU is a Dual LDMOS transistor type electronic component manufactured by Ampleon USA Inc.

  • Family: BLF2324M8LS200P
  • Package: SOT539B
  • Frequency Range: 2.3GHz to 2.4GHz
  • Current Test: 1.74A
  • Voltage Rating DC: 65V
  • Power Output: 60W
  • Gain: 17.2dB
  • Supply/Demand Status: Limited
  • EOL Date: 2030
  • Introduction Date: December 07, 2015
  • Halogen-Free: Yes
