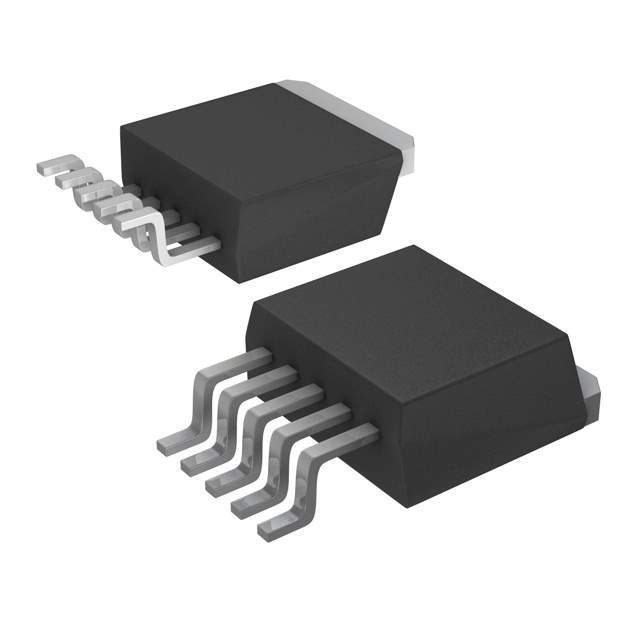

The Anachip Corp AP1501K5L is a monolithic integrated circuit designed for step-down DC-DC conversion. It is a versatile voltage regulator suitable for a wide range of applications. This regulator is designed for simplicity of use, requiring a minimal number of external components. It operates at a fixed switching frequency, making it easier to filter output noise. This device is well-suited for applications where efficient and compact power conversion is required.

Applications:

• Power Supplies
• DC-DC Converters
• Battery Chargers
• Point-of-Load Regulation
• Embedded Systems

Features:

• Adjustable Output Voltage
• Fixed Switching Frequency
• Wide Input Voltage Range
• Excellent Line and Load Regulation
• Built-in Thermal Shutdown
• Current Limit Protection

Benefits:

• High efficiency power conversion
• Stable and reliable operation
• Simplified circuit design
• Protection against over-temperature and over-current conditions
• Compact solution for space-constrained applications

Additional Details:

The AP1501K5L incorporates internal compensation, minimizing the number of external components required. The device operates at a fixed switching frequency, simplifying the design of the output filter. It includes built-in thermal shutdown and current limit protection to prevent damage in fault conditions.

External components, such as inductors and capacitors, should be selected carefully to optimize performance and efficiency. Proper layout techniques are also crucial to minimize noise and ensure stable operation. The datasheet provides detailed guidance on component selection and layout recommendations.
