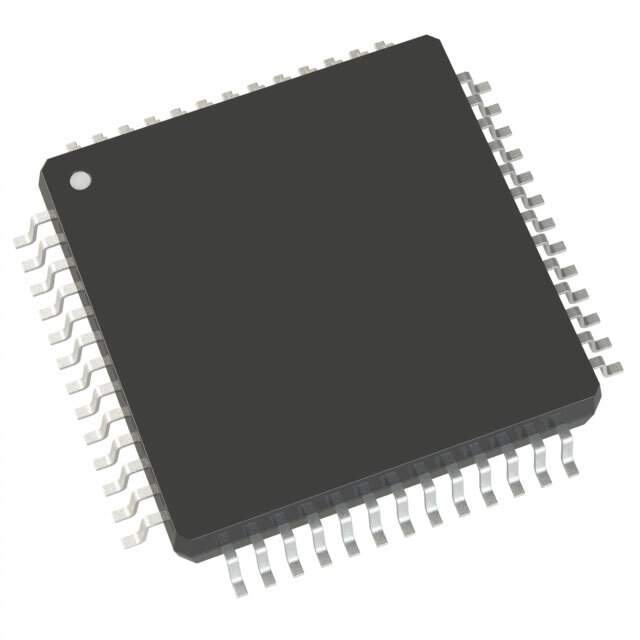

AD5360BSTZ-REEL

Part No AD5360BSTZ-REEL
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 16BIT 16CH SERIAL 52-LQFP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Number of Bits 16
Number of D/A Converters 16
Settling Time 30μs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type External
Analog Supply Voltage 8 V to 16.5 V, -4.5 V to 16.5 V
Digital Supply Voltage 2.5 V to 5.5 V
INL/DNL (LSB) ±4 (Max), ±1 (Max)
Temperature Range - Operating -40°C to 85°C
Case / Package 52-LQFP (10x10)
Win Source Part Number 141495-AD5360BSTZ-REEL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AD5360BSTZ-REEL CAD Model

Description

The AD5360BSTZ-REEL, manufactured by Analog Devices Inc., is a high-performance, 16-channel, 16-bit digital-to-analog converter (DAC) designed to meet the demanding requirements of industrial and communication applications. This precision DAC offers a versatile solution for complex systems requiring multiple output channels with fine resolution and accuracy.

Key Features:

  • 16 Independent DAC Channels: This device integrates sixteen 16-bit DACs in a single package, providing a compact solution for systems with multiple output requirements.
  • High Resolution: With 16-bit resolution, the AD5360BSTZ-REEL ensures precise control over output signals, making it ideal for applications where accuracy is critical.
  • Flexible Reference Inputs: It features a wide range of reference input capabilities, allowing for both external and internal reference voltages, which can be buffered or unbuffered to suit various application needs.
  • Programmable Output Ranges: The DAC supports multiple programmable output ranges, including bipolar and unipolar configurations, providing versatility in signal generation.
  • Serial Interface: The device includes a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, facilitating easy integration with a variety of microcontrollers and digital systems.
  • Integrated Output Amplifiers: Each DAC channel has its own output amplifier, which can drive capacitive loads and simplify the design of the output stage.
  • Thermal Monitoring: The AD5360BSTZ-REEL is equipped with an on-chip temperature sensor for thermal monitoring, helping to protect the device from overheating.
  • Power-On Reset: The DAC channels power up with their outputs disabled to a known state, minimizing potential issues during system power-up.

Applications:

The AD5360BSTZ-REEL is suitable for a wide array of applications, including:

  • Automated Test Equipment (ATE)
  • Data Acquisition Systems
  • Industrial Control Systems
  • Medical Instrumentation
  • Communication Infrastructure

With its comprehensive feature set, the AD5360BSTZ-REEL by Analog Devices Inc. represents a robust, multi-channel DAC solution that delivers precision, performance, and flexibility for advanced electronics systems.
