Product Overview: AD5420AREZ-REEL7

The AD5420AREZ-REEL7 is a high-performance, single-channel, serial input, current output digital-to-analog converter (DAC) from Analog Devices Inc., a leader in precision high-performance integrated circuits. This device is designed to meet the stringent requirements of industrial process control applications, including programmable logic controllers (PLCs), distributed control systems (DCS), and smart transmitters.

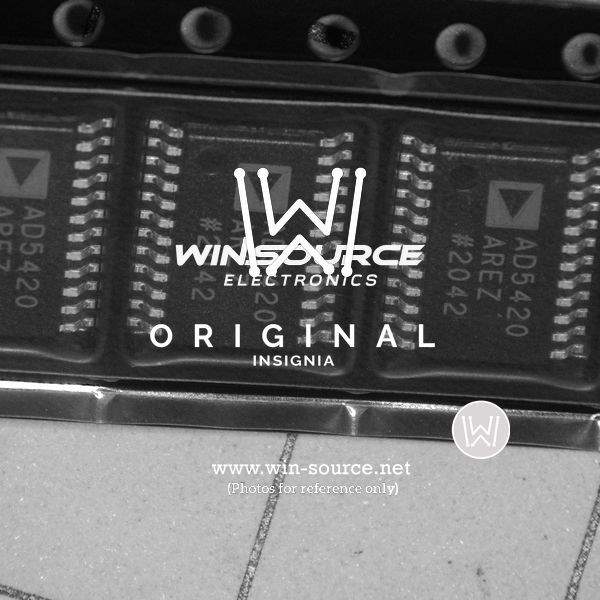

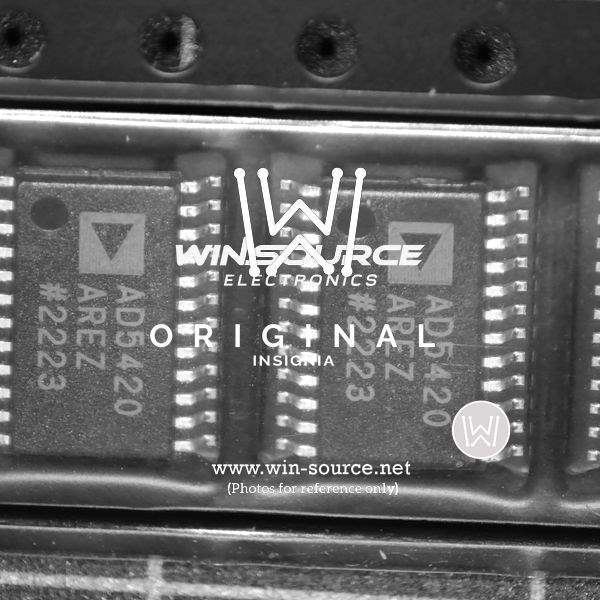

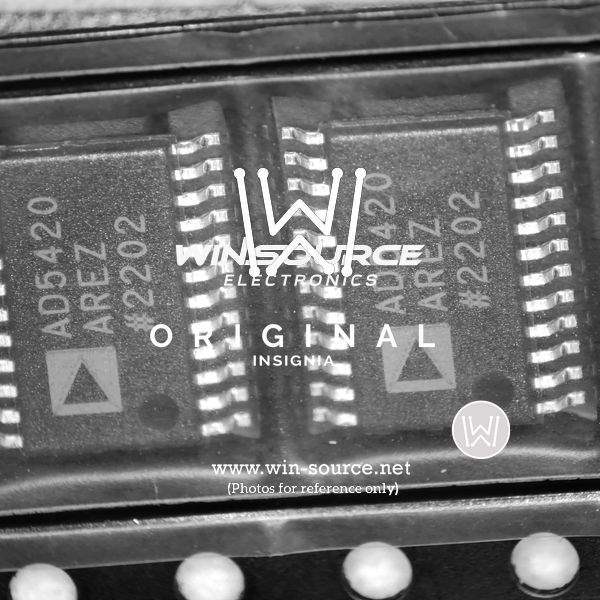

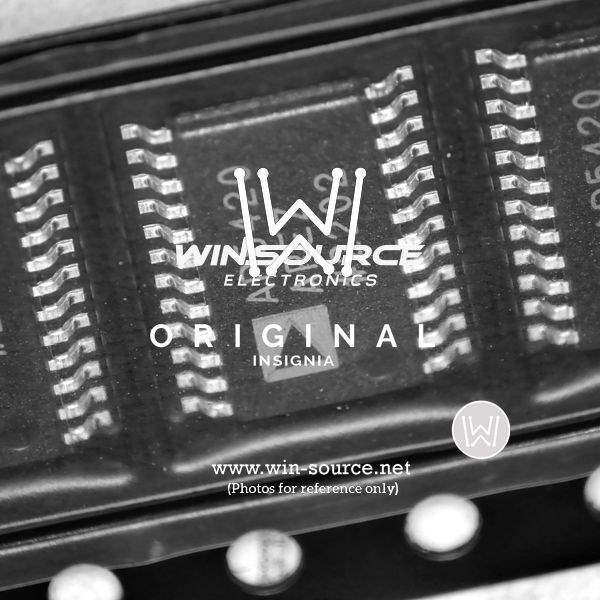

Encased in a compact, surface-mount package, the AD5420AREZ-REEL7 offers a 16-bit resolution that ensures precise control over current outputs ranging from 4 mA to 20 mA, and it can also provide a voltage output with an external resistor. The device operates over a wide supply range of 12 V to 32 V, making it versatile for various industrial power supplies.

One of the key features of the AD5420AREZ-REEL7 is its robust design, which includes fault diagnosis and detection capabilities. The device can detect open circuit, short circuit, overtemperature, and nonvolatile memory (NVM) errors, which enhances system reliability and safety. The integrated precision voltage reference and on-chip output fault detection further contribute to the device's accuracy and dependability.

The AD5420AREZ-REEL7 supports flexible digital interfaces, with a serial peripheral interface (SPI) that allows for easy integration into microcontroller-based systems. The device also offers a hardware-selectable reset to either 4 mA or 20 mA, which provides a fail-safe condition in the event of a system fault or power-down scenario.

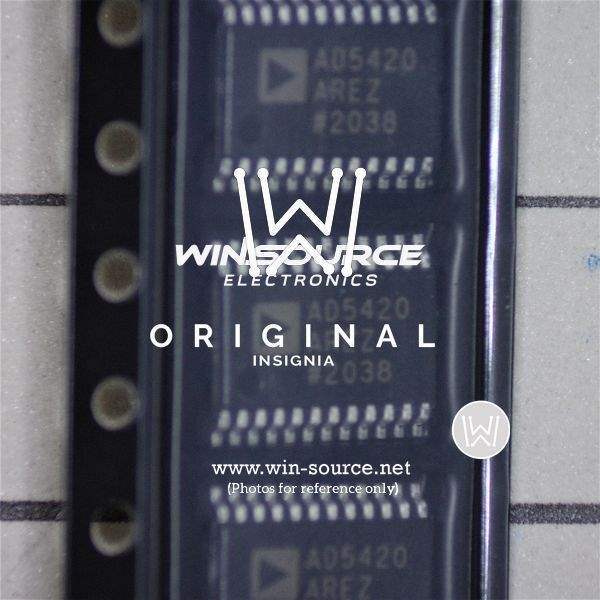

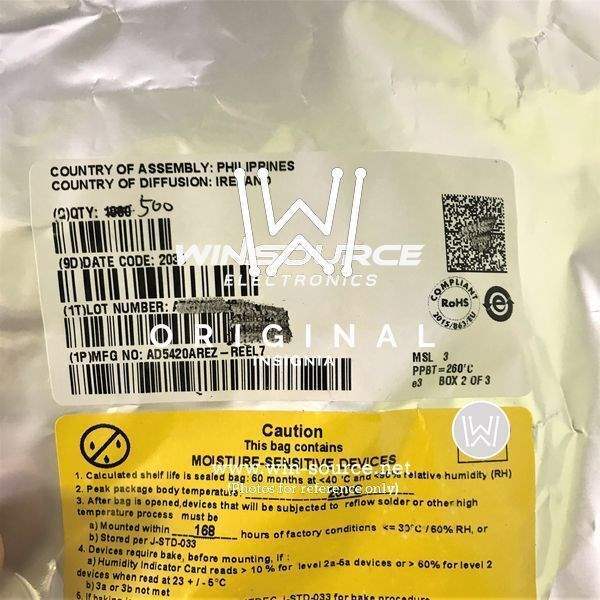

This DAC comes in the REEL7 packaging, indicating that it is provided on a reel for automated assembly processes, making it suitable for high-volume production environments. Analog Devices Inc. ensures that the AD5420AREZ-REEL7 meets the highest quality and performance standards, providing reliable and precise control in demanding industrial settings.

In summary, the AD5420AREZ-REEL7 from Analog Devices Inc. stands out for its precision, robustness, and easy integration, making it an excellent choice for system designers looking to improve the accuracy and reliability of their industrial control systems.
