AD5441BCPZ-REEL7 Digital-to-Analog Converter

The AD5441BCPZ-REEL7 is a high-performance, single-channel, 14-bit, serial input, digital-to-analog converter (DAC) from Analog Devices Inc. This precision DAC is designed to offer a balance of accuracy, speed, and power efficiency, making it an ideal choice for a wide range of applications, including industrial automation, process control, and medical equipment.

Key Features:

• Resolution: The DAC boasts a 14-bit resolution, providing fine granularity and precise control over analog output signals.
• Data Interface: It features a versatile 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with most microcontrollers and digital systems.
• Output Range: The device offers a flexible output range, with the ability to select between various reference voltages for both unipolar and bipolar operation.
• Power Consumption: With low power consumption, the AD5441BCPZ-REEL7 is suitable for battery-powered devices and power-sensitive applications.

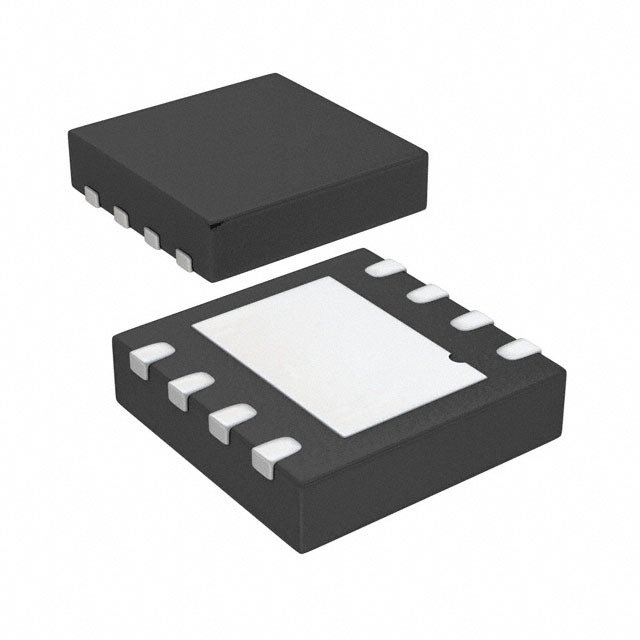

• Package: Encased in a compact LFCSP (Lead Frame Chip Scale Package), this DAC saves valuable board space and is ideal for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range, ensuring reliable performance under varying environmental conditions.

Performance Advantages:

The AD5441BCPZ-REEL7 provides excellent accuracy and stability, minimizing the need for calibration in end systems. Its high-speed serial interface allows for fast data transfers, while the low glitch energy reduces noise and improves the overall signal quality of the output.

Applications:

Given its robust feature set, the AD5441BCPZ-REEL7 is well-suited for:

• Programmable Logic Controllers (PLCs)
• Data Acquisition Systems (DAQs)
• Automated Test Equipment (ATE)
• Portable Instruments
• Analog Output Modules

Overall, the AD5441BCPZ-REEL7 from Analog Devices Inc. represents a reliable and versatile solution for digital-to-analog conversion requirements in a multitude of high-performance applications.
