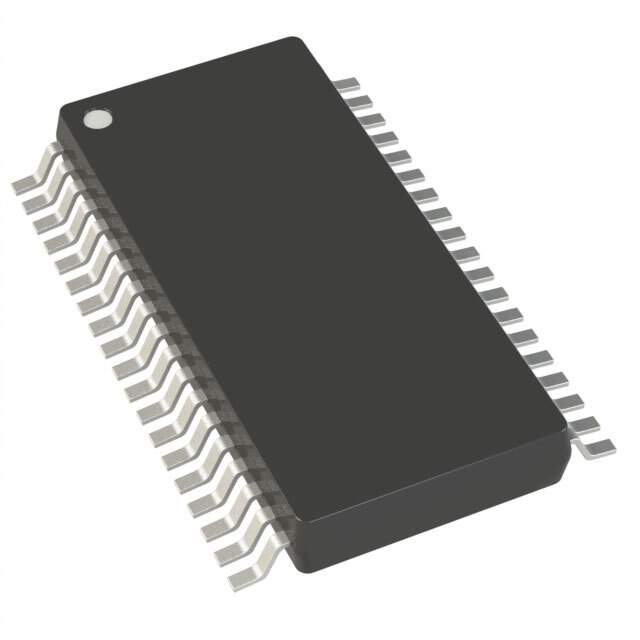

Analog Devices Inc. AD5547CRUZ Dual Channel, 16-Bit, Serial Input, Voltage Output DAC

The AD5547CRUZ from Analog Devices Inc. is a precision dual-channel, 16-bit digital-to-analog converter (DAC) designed to deliver high-performance output for a wide range of applications. This component offers a flexible serial interface that is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards, making it an ideal choice for embedded systems that require accurate analog output.

Constructed with advanced CMOS technology, the AD5547CRUZ is part of the AD5547 series, which is known for its excellent data throughput, low power consumption, and stable performance over varying temperatures and power supply conditions. The device operates on a single 5V supply, ensuring compatibility with a broad range of microcontrollers and digital systems.

Key features of the AD5547CRUZ include:

• High Resolution: The 16-bit resolution provides fine-grain control over the output voltage, allowing for precise adjustments in your application.
• Dual-Channel Output: With two independent DAC outputs, the device can control multiple analog signals simultaneously, which is crucial for complex systems requiring multi-axis control or signal generation.
• Low Glitch Energy: The DAC's design minimizes the glitch impulse during output transitions, making it suitable for sensitive applications such as waveform generation.
• Wide Temperature Range: The device operates reliably across a temperature range of -40°C to +85°C, making it suitable for industrial environments.
• Compact Package: Housed in a 16-lead TSSOP (Thin Shrink Small Outline Package), the AD5547CRUZ is space-efficient and easily fits into space-constrained designs.

Applications for the AD5547CRUZ are diverse and include industrial control systems, automated test equipment, digital gain and offset adjustment, programmable voltage and current sources, and waveform generation. With its high resolution and dual-channel capability, this DAC delivers the accuracy and performance needed for sophisticated electronic systems.

Whether you're designing a precision control system or an intricate signal processing unit, the AD5547CRUZ from Analog Devices Inc. offers a reliable and high-quality solution for your analog output requirements.
