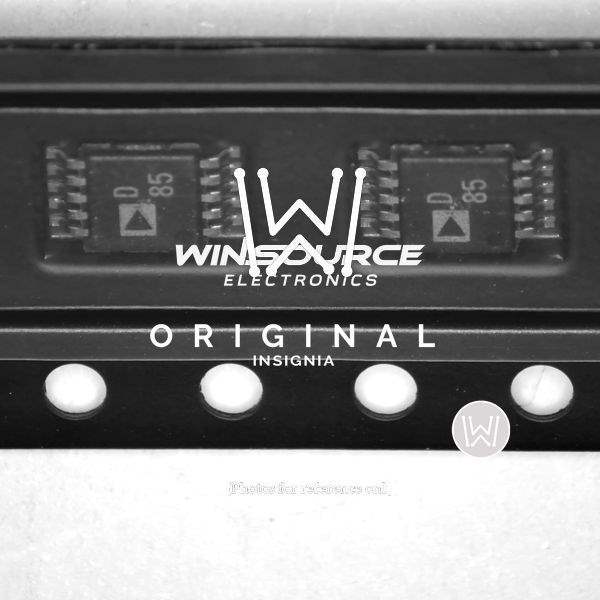

AD5623RBRMZ-3 Digital-to-Analog Converter

The AD5623RBRMZ-3, manufactured by Analog Devices Inc., is a highly precise 12-bit digital-to-analog converter (DAC) designed for those applications where space and power efficiency are paramount without compromising on performance. This compact DAC component is part of the nanoDAC® series, which is well-known for its small size and low power consumption, making it an ideal choice for portable and battery-powered applications.

Encased in an MSOP-10 package, the AD5623RBRMZ-3 offers a dual-channel architecture, allowing for simultaneous output of two analog signals from digital inputs. This feature is particularly useful in systems where multiple analog signals are required to be generated concurrently, such as in waveform generators or actuator controls.

The device operates from a single 2.7V to 5.5V supply, providing excellent power efficiency. It also includes an internal reference with a default of 2.5V, which can be overridden by an external reference if a different voltage is required for specific applications. This flexibility ensures that the AD5623RBRMZ-3 can be easily integrated into a wide range of systems with varying power supplies and reference voltage requirements.

Communication with the AD5623RBRMZ-3 is achieved via a standard 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. This ensures easy integration with most microcontrollers and digital systems. Additionally, the device features a power-down mode that significantly reduces the current consumption to 200 nA at 5V, further enhancing its suitability for power-sensitive applications.

The AD5623RBRMZ-3 is designed with accuracy in mind, featuring a relative accuracy specification of ±1 LSB INL and DNL, ensuring precise and stable analog outputs. The device's fast settling time and low glitch energy make it an excellent choice for applications requiring high-speed and high-precision signal conversion, such as digital control loops and programmable voltage and current sources.

Overall, the AD5623RBRMZ-3 from Analog Devices Inc. is a robust and reliable DAC solution that offers a perfect blend of size, power efficiency, and performance for a wide array of electronic applications.
