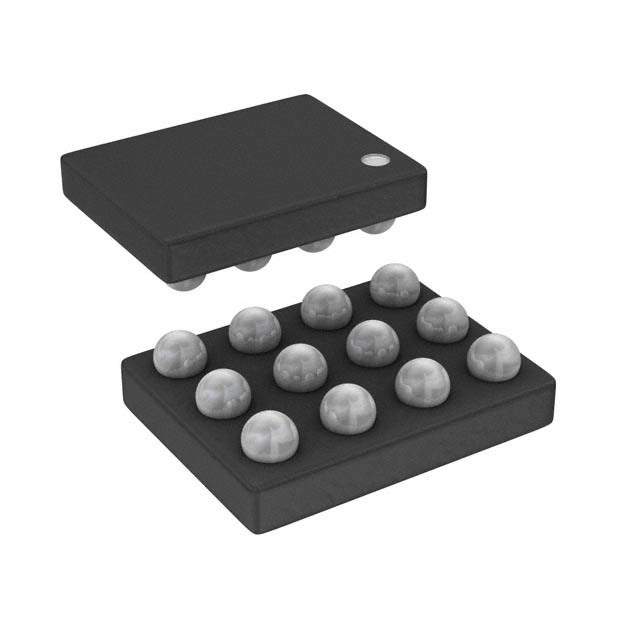

Product Overview: AD5665RBCBZ-1-RL7 by Analog Devices Inc.

The AD5665RBCBZ-1-RL7 is a high-precision, quad-channel, 16-bit digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc., an industry leader in high-performance semiconductors. This component is part of the nanoDAC+™ series, which is known for its small size and high accuracy, making it an ideal choice for a wide range of applications, including industrial automation, process control, and medical equipment.

Key Features

• Resolution: The AD5665R features a 16-bit resolution, providing fine granularity and high precision in analog output.
• Quad Channel: With four DAC channels in one package, it allows for multiple signal outputs, saving space and reducing complexity in design.
• Output Range: It offers a selectable output range, including 2.5V to 5.5V reference, providing flexibility for various application requirements.
• Interface: The device includes a user-friendly I²C compatible serial interface that supports standard (100 kbps), fast (400 kbps), and high speed (3.4 Mbps) operation modes.
• Power-On Reset: The DAC outputs power up to zero-scale or mid-scale, which can be selected via an external pin, ensuring a predictable start-up state.
• Package: It is available in a compact, 10-lead MSOP (Mini Small Outline Package), which is suitable for space-constrained applications.

Performance and Reliability

The AD5665R is designed to deliver high performance with a total unadjusted error (TUE) of ±0.1% of the full-scale range maximum. Its low power consumption makes it suitable for battery-powered devices and portable equipment. The device also features a power-down mode, further reducing power consumption when not in active use.

Applications

This DAC is versatile and can be used in a variety of applications, including:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources

The AD5665RBCBZ-1-RL7 by Analog Devices Inc. represents a blend of performance, precision, and convenience, making it a top choice for engineers and designers looking for a reliable DAC solution in multi-channel applications.
