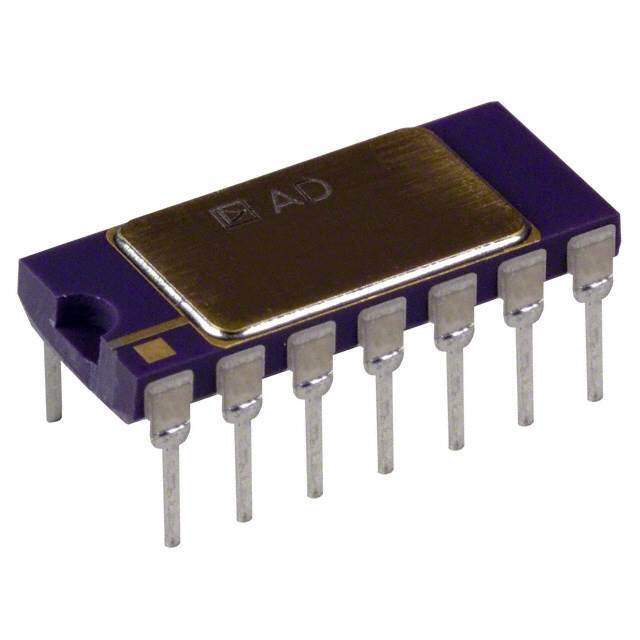

AD595ADZ Thermocouple Amplifier by Analog Devices Inc.

The AD595ADZ is a specialized integrated circuit designed by Analog Devices Inc., tailored for precise and convenient temperature measurement using thermocouples. As an all-in-one solution, this monolithic device incorporates an instrumentation amplifier, a type-K thermocouple cold junction compensator, a signal conditioning circuit, and an analog output stage, providing a direct Celsius temperature readout.

Key Features

• Integrated Cold Junction Compensation: The AD595ADZ includes an on-chip temperature sensor that compensates for changes in the cold junction temperature, ensuring accurate temperature readings regardless of the ambient temperature.
• Linearization Circuitry: This device features built-in linearization for the K-type thermocouple, delivering a linear 10 mV/°C output that simplifies interfacing with analog-to-digital converters or direct reading through a voltmeter.
• Wide Power Supply Range: It operates with a supply voltage from +5V to +15V for single supply or ±5V to ±15V for dual supply, providing flexibility for various application requirements.
• High Impedance Differential Input: The high impedance differential input is designed to enhance noise rejection and improve measurement accuracy, which is critical for low-level signal amplification.
• Robust Temperature Range: The AD595ADZ can measure temperatures from -55°C to +125°C, covering a broad range of applications from industrial to consumer electronics.

Applications

The AD595ADZ is ideally suited for a variety of temperature sensing applications where reliability and ease of use are paramount. Common applications include:

• Process control and automation
• Temperature monitoring systems
• Thermal protection and management
• Scientific and laboratory equipment

By integrating multiple functions into a single package, the AD595ADZ from Analog Devices Inc. simplifies the design and deployment of thermocouple-based temperature measurement systems. Its robustness, combined with high precision and ease of use, makes it an excellent choice for engineers and designers looking to implement reliable temperature sensing in their projects.
