The AD624BDZ from Analog Devices Inc. is a high precision instrumentation amplifier designed to offer a perfect blend of performance and flexibility. This component is widely recognized for its exceptional accuracy and versatility, making it an ideal choice for a broad range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features

• Outstanding Linearity: The AD624BDZ boasts a nonlinearity of only 0.001% at G = 100, ensuring precise signal amplification without distortion.
• Wide Gain Range: With a user-selectable gain range from 1 to 10,000, this amplifier can adapt to various signal levels, providing flexibility in diverse application scenarios.
• Low Noise: A low noise floor is critical for precision measurements, and the AD624BDZ excels with a low noise density of 0.9 nV/√Hz at 1 kHz, G = 1000.
• High Input Impedance: The device offers a high input impedance of 10 GΩ, which minimizes loading on the input signal and preserves signal integrity.
• Excellent Common-Mode Rejection: With a common-mode rejection ratio (CMRR) of 130 dB at G = 1000, the amplifier effectively suppresses unwanted common-mode signals.

Applications

The AD624BDZ is suited for a variety of applications where precision signal processing is required:

• Medical instrumentation such as ECG and EEG monitors
• Strain gage amplifiers
• Industrial process controls
• Transducer interfaces
• Data acquisition systems

Quality and Reliability

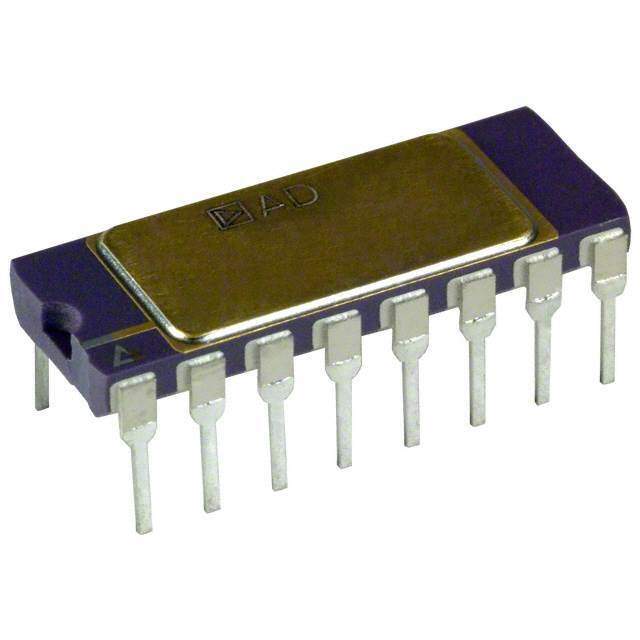

Analog Devices Inc. is known for its commitment to quality, and the AD624BDZ is no exception. It is available in a 16-lead ceramic DIP (CDIP) package, ensuring robustness and reliability for critical applications. Moreover, the device operates over a temperature range of -40°C to +85°C, accommodating a wide array of environmental conditions.

Ordering Information

The product is available with the designation AD624BDZ, and interested customers can obtain it through authorized distributors. For detailed specifications, technical documents, and support, visit the Analog Devices Inc. website or contact their customer service.
