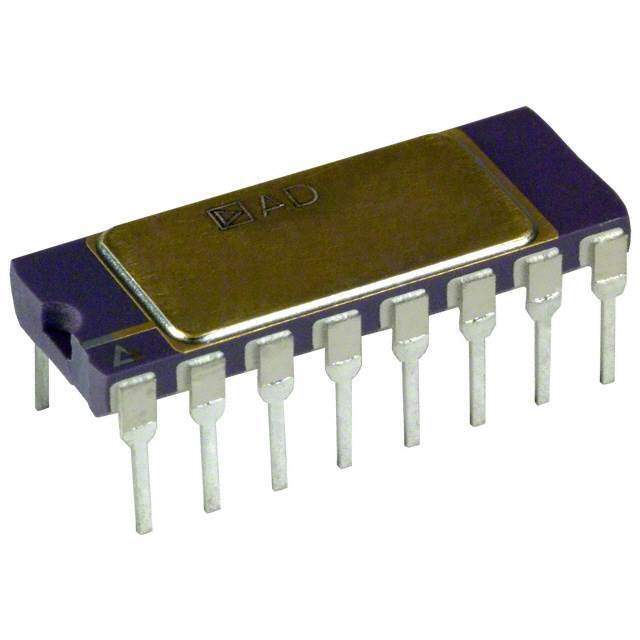

The AD625SD from Analog Devices Inc. is a high-precision instrumentation amplifier designed to fulfill the rigorous demands of data acquisition and signal conditioning applications. This device is renowned for its exceptional accuracy, low noise, and ease of use, making it an ideal choice for professionals in the fields of medical instrumentation, industrial process control, and precision data systems.

Key Features

• High Accuracy: The AD625SD boasts a nonlinearity of only 0.001% max at G = 100, ensuring precise signal amplification for critical measurements.
• Wide Gain Range: With a user-selectable gain range from 1 to 10,000, this instrumentation amplifier can adapt to various signal levels, providing flexible performance across different applications.
• Low Noise: Its low noise performance is crucial for applications that require clean signal amplification, minimizing the introduction of errors and enhancing the quality of the output signal.
• High Common-Mode Rejection: The AD625SD offers a common-mode rejection ratio (CMRR) of 120 dB min at G = 100, which is perfect for rejecting unwanted signals and noise that are common in industrial environments.
• Settling Time: It features a fast settling time, enabling quick and accurate readings in dynamic systems.

Applications

The AD625SD is versatile and can be used in a variety of applications. Its precision and reliability make it particularly suitable for:

• Medical Instrumentation: EKG, EEG, patient monitoring systems
• Industrial Process Controls: Transducer interfaces, data acquisition systems
• Strain Gages: Weighing systems, pressure sensors
• Test Equipment: Signal conditioning in oscilloscopes, multimeters

Product Specifications

Encased in a durable package, the AD625SD is designed to withstand challenging environments. It operates over a wide temperature range, ensuring consistent performance in both commercial and industrial settings.

Conclusion

The AD625SD from Analog Devices Inc. represents a blend of precision engineering and practical design, delivering a top-tier instrumentation amplifier that meets the stringent requirements of today's sophisticated electronic systems. With its robust feature set and versatile applications, the AD625SD is a valuable component for any precision signal processing task.
