AD724JR-REEL RGB to NTSC/PAL Encoder

The AD724JR-REEL is a high-performance integrated circuit developed by Analog Devices Inc., designed to convert RGB graphics signals into NTSC or PAL formats for use in television and video applications. This versatile chip is ideal for systems where a direct interface between a graphics or video controller and a TV screen is necessary, such as in video game consoles, DVD players, and digital signage solutions.

Key Features:

• Integrated Triple 2.5 MHz Video DACs: The AD724JR-REEL includes three digital-to-analog converters that operate at 2.5 MHz, providing a high-quality output signal for each of the RGB color channels.
• NTSC and PAL Compatible: This encoder can produce both NTSC and PAL signals, ensuring compatibility with television standards used worldwide.
• Low Power Consumption: Designed to be energy-efficient, the AD724JR-REEL operates with a low power consumption, making it suitable for portable and battery-powered applications.
• Composite and S-Video Outputs: It provides both composite and S-Video outputs, offering flexibility in connecting to various types of displays and recording equipment.
• On-Chip Color Burst Generation: The encoder includes an on-chip color burst oscillator, eliminating the need for external components to generate the color synchronization signal.
• 5V Single Supply Operation: The device operates on a single 5V power supply, simplifying the power design for the system it is integrated into.

Applications:

• Video Game Consoles
• Portable Video Players
• Digital Signage Systems
• Computer Video Output to TV
• Video Conference Systems

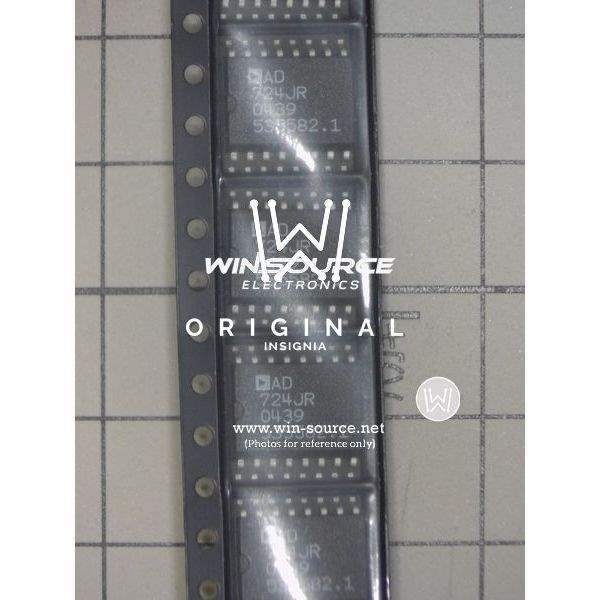

The AD724JR-REEL comes in a convenient reel packaging, making it suitable for high-volume production environments. With its robust design and comprehensive feature set, this encoder is a top choice for designers looking to bridge the gap between digital graphics processing and analog video display.

As a product of Analog Devices Inc., a leader in the semiconductor industry, you can expect reliability and performance from the AD724JR-REEL, ensuring that your video applications deliver crisp, accurate colors and synchronization with standard television signals.
