Product Overview: AD7291BCPZ by Analog Devices Inc.

The AD7291BCPZ is a high-performance, multi-channel analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This precision ADC is part of their extensive range of data converters, offering a compact, integrated solution for advanced data acquisition systems.

At the heart of the AD7291BCPZ lies a 12-bit successive approximation register (SAR) ADC with eight single-ended channels. These channels provide the versatility needed to interface with a variety of sensors and signals in complex industrial, medical, and communication systems. The device operates over a wide supply voltage range, making it suitable for battery-powered and energy-efficient applications.

The AD7291BCPZ also features an on-chip, low dropout (LDO) regulator, which simplifies the power supply design by providing a stable voltage source for the ADC. This feature is particularly useful in environments where power supply noise can affect the accuracy of signal measurements.

Key Features:

• High Resolution: 12-bit SAR ADC offering precise measurement capabilities.
• Multiple Channels: Eight single-ended input channels allow for simultaneous monitoring of various signals.
• Low Power Consumption: Ideal for battery-operated devices, the AD7291BCPZ is designed for efficient power usage.
• Integrated LDO Regulator: Ensures clean power supply for the ADC, enhancing overall performance.
• Flexible Interface: The device includes an I²C-compatible serial interface, facilitating easy communication with microcontrollers and digital systems.

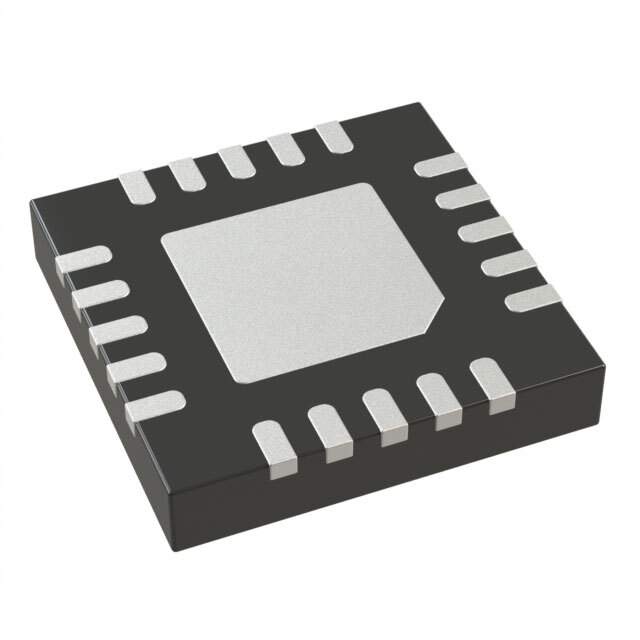

The AD7291BCPZ is packaged in a compact 20-lead LFCSP (Lead Frame Chip Scale Package), which minimizes the footprint on printed circuit boards and is excellent for space-constrained applications. The operating temperature range of −40°C to +125°C ensures reliable performance across various environmental conditions.

With its combination of multiple channels, high resolution, and integrated features, the AD7291BCPZ from Analog Devices Inc. is an optimal choice for engineers seeking a robust and versatile ADC solution for their next project.
