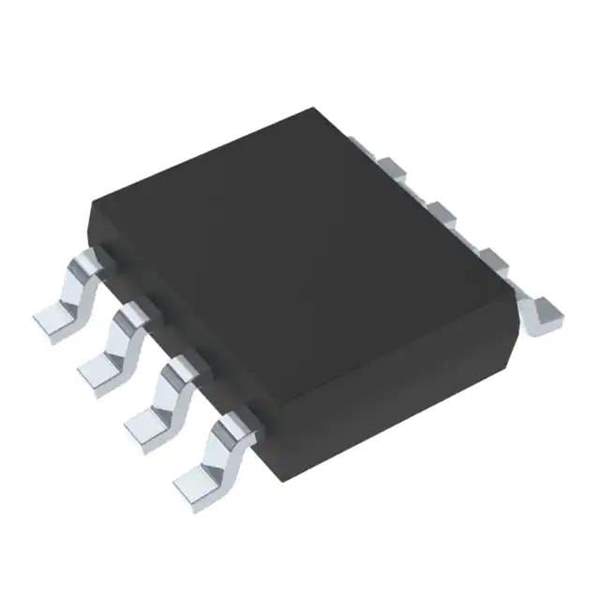

The AD7402-8BRIZ-RL7 from Analog Devices Inc. is a sophisticated 16-bit, isolated sigma-delta modulator that delivers a high-performance solution for precision signal acquisition. Designed to capture high-fidelity analog signals in noisy industrial environments, this component is a critical part of advanced data acquisition systems, such as those used in medical instrumentation, battery monitoring, and industrial process control.

Key Features

• Isolation: The device features an isolation barrier capable of withstanding voltages up to 5 kVrms, providing safety and protection against high common-mode voltages.
• Resolution: With a 16-bit data output, the AD7402-8BRIZ-RL7 ensures precise digital representation of the analog input signal.
• Data Rate: It supports a wide range of data rates, allowing users to optimize the trade-off between resolution and speed.
• Interface: The serial peripheral interface (SPI) ensures easy integration with microcontrollers and digital signal processors.
• Integrated Features: On-chip digital isolation and a low-pass filter reduce the need for additional external components, simplifying design and reducing system cost.
• Robustness: The device is designed to operate reliably in harsh industrial environments, withstanding temperatures ranging from -40°C to +125°C.

Applications

The AD7402-8BRIZ-RL7 is ideal for a variety of applications where accurate signal processing and isolation are critical. These include:

• Industrial automation and process control systems
• Motor control and electric drive systems
• Renewable energy systems, such as solar inverters and wind turbines
• Medical equipment requiring electrical isolation for patient safety
• Battery-powered applications, including battery management and monitoring

Package and Availability

The component is available in a compact 16-lead SOIC package, ensuring a minimal footprint on the PCB. The part number AD7402-8BRIZ-RL7 indicates that the device is provided in tape and reel packaging, making it suitable for automated assembly processes and high-volume production.

For engineers and designers seeking a reliable and precise isolated ADC solution, the AD7402-8BRIZ-RL7 from Analog Devices Inc. offers an exceptional balance of performance, integration, and robustness, making it a top choice for demanding applications.
