The AD7820BQ is a high-performance, single-channel, 8-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This component is designed for applications requiring fast conversion rates and accurate digital representation of analog signals.

Key Features

• Fast Conversion Rate: The AD7820BQ boasts a conversion time of just 1.75 µs, making it ideal for high-speed data acquisition systems and real-time signal processing applications.
• High Accuracy: With 8-bit resolution, it provides a fine digital representation of the input signal, ensuring precise measurements and control in your electronic design.
• Wide Analog Input Range: The device can handle a versatile range of input voltages, accommodating various signal amplitudes.
• Low Power Consumption: Engineered for efficiency, the AD7820BQ operates with a low power requirement, which is critical for portable and battery-powered applications.
• Easy Interface: It features a parallel data output format, which allows for simple interfacing with microprocessors and digital systems.

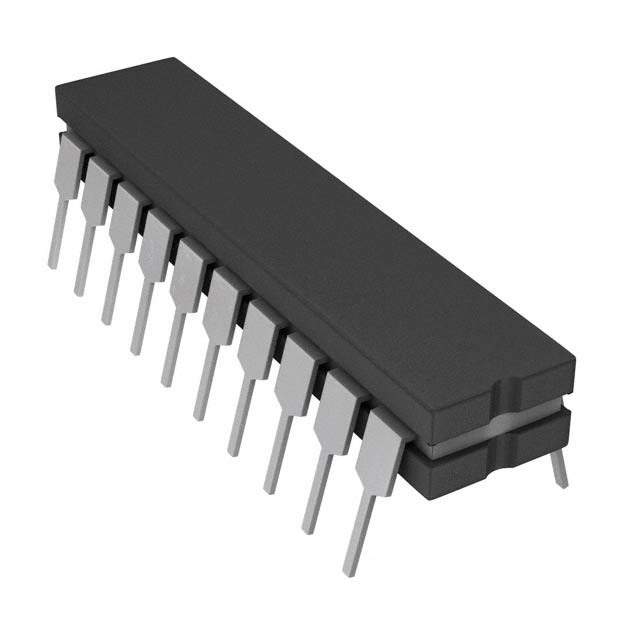

• Compact Package: The AD7820BQ comes in a compact, 20-pin ceramic DIP (Dual In-line Package), which ensures easy integration into a wide range of electronic circuits.

Applications

The versatility of the AD7820BQ makes it suitable for a broad array of applications, including:

• Medical imaging systems
• Digital oscilloscopes
• Telecommunications
• Instrumentation and control systems
• Data acquisition modules

Technical Specifications

Parameter Value Resolution 8-Bit Conversion Time 1.75 µs Input Voltage Range Versatile Supply Voltage 5 V ±5% Operating Temperature -40°C to +85°C Package Type 20-pin DIP

For detailed specifications and application support, visit the Analog Devices Inc. website or contact their technical support team.
