Analog Devices Inc. AD7837BQ Dual 12-Bit DAC

The AD7837BQ from Analog Devices Inc. is a high-performance, dual 12-bit digital-to-analog converter (DAC) designed to deliver precision and accuracy in a wide range of applications. This integrated circuit is part of a series that offers excellent stability and low power consumption, making it an ideal choice for industrial, communication, and instrumentation systems where reliable digital-to-analog conversion is critical.

Constructed with advanced CMOS technology, the AD7837BQ features two individual DACs on a single chip, allowing for compact and efficient designs. Each DAC operates independently and has its own voltage output. The dual-channel architecture of the AD7837BQ enables simultaneous updating of outputs, which is essential for applications requiring synchronized analog signals.

The device operates with a versatile supply voltage range, accommodating both single-supply operations at +5V and dual supplies at ±5V. This flexibility makes it suitable for various system design requirements. The AD7837BQ also includes a power-down feature, which reduces the power consumption significantly when the DAC is not in use, thus conserving energy and extending the life of battery-powered devices.

With its fast settling time and low glitch energy, the AD7837BQ ensures high-speed performance and minimal distortion in the output signal. This is particularly important in applications such as waveform generation, where signal integrity is paramount. The DAC's digital interface is TTL/CMOS compatible, providing easy integration with a wide range of microprocessors and digital systems.

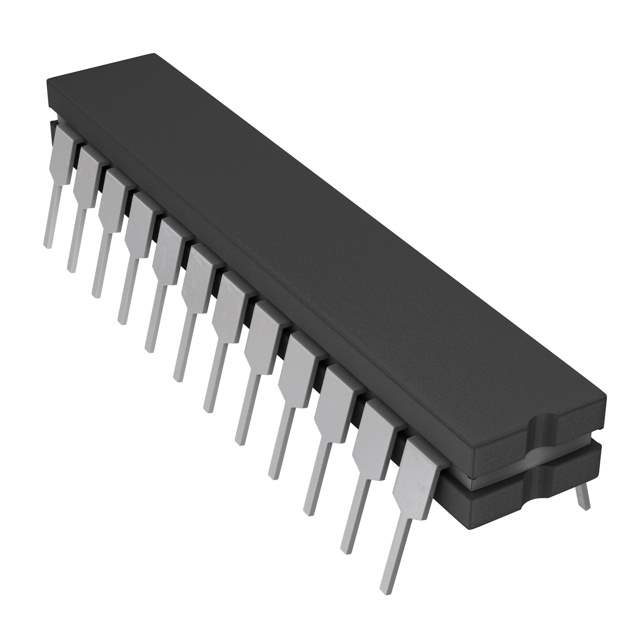

For enhanced reliability, the AD7837BQ is packaged in a robust 24-pin plastic DIP (dual in-line package), ensuring mechanical stability and ease of mounting on printed circuit boards. The product is also available in a surface-mount package, catering to the needs of compact and high-density electronic assemblies.

In summary, the AD7837BQ from Analog Devices Inc. stands out as a dual-channel, high-precision DAC solution that combines performance, versatility, and power efficiency. It is a top choice for designers looking to achieve accurate analog signal representation in their digital systems.
