The AD7865BSZ-3 is a high-performance, multi-channel analog-to-digital converter (ADC) produced by Analog Devices Inc., a leader in the semiconductor industry. This precision ADC is designed for applications requiring multiple analog inputs to be digitized with high accuracy and speed. It is particularly well-suited for medical imaging, data acquisition systems, and industrial control applications.

Key Features

• Simultaneous Sampling: The AD7865BSZ-3 features four simultaneously sampling ADCs, which allows for accurate multi-channel measurements without the phase delay between channels that can occur with multiplexed systems.
• Resolution and Speed: This ADC offers a 14-bit resolution with a maximum sampling rate of 570 kSPS (kilo-samples per second), providing a good balance between high resolution and fast data acquisition.
• Input Voltage Range: It operates with an analog input voltage range of ±10 V, making it versatile for various signal levels.
• Interface: The product includes a parallel interface for easy integration with microprocessors and DSPs, facilitating efficient data transfer.
• Power Supply: The AD7865BSZ-3 operates from a 5V power supply and features a power-down mode to conserve energy when the device is not in active use.

Performance Advantages

With its simultaneous sampling feature, the AD7865BSZ-3 ensures that the input signals are converted at the same point in time, which is crucial for applications such as motor control where phase information is important. The high resolution and speed make it an excellent choice for systems that require precise measurements with minimal latency.

Package and Quality

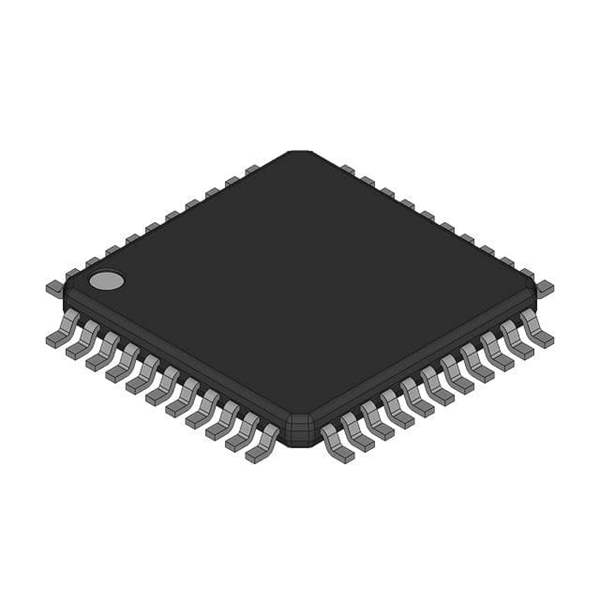

The device is offered in a 44-lead MQFP (Metric Quad Flat Pack) package, which is designed for space-saving on printed circuit boards. Analog Devices Inc. is known for its commitment to high-quality products, and the AD7865BSZ-3 is built to meet stringent industry standards for performance and reliability.

Conclusion

The AD7865BSZ-3 from Analog Devices Inc. represents a blend of advanced technology, precision, and flexibility, making it a top choice for engineers and designers looking to enhance their systems with a reliable multi-channel ADC solution.
