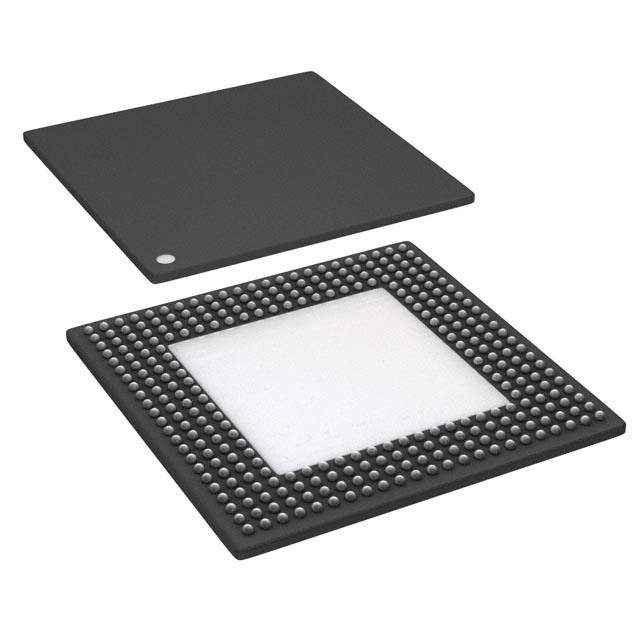

The AD8117ABPZ is a high-performance, 16 x 16 crosspoint switch matrix designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This product is ideal for various applications that require routing of high-speed signals, including video distribution, communication systems, and data networks.

Key Features

• High Bandwidth: The device boasts a large bandwidth of 400 MHz, ensuring minimal signal degradation during transmission and making it suitable for handling high-speed data streams.
• Low Crosstalk: With superior isolation between channels, the AD8117ABPZ minimizes crosstalk, a critical feature for maintaining signal integrity in dense routing environments.
• Gain Flatness: Excellent gain flatness across the entire video band provides consistent signal strength, which is essential for maintaining picture quality in video applications.
• Scalable: Multiple devices can be cascaded for larger array sizes without significant loss of signal quality, allowing for flexible system design.
• Programmable Output Offset: The AD8117ABPZ includes programmable output offset control, which helps to optimize signal levels and minimize the need for external components.

Technical Specifications

Parameter Value Part Number AD8117ABPZ Bandwidth 400 MHz Crosstalk (at 5 MHz) -83 dB Package 80-lead LFCSP Operating Temperature -40°C to +85°C

Applications

The AD8117ABPZ is versatile enough to be used in a variety of applications, including but not limited to:

• Professional video switching and routing
• Communication systems such as switches and routers
• Signal distribution in broadcast studios
• Video-on-demand servers

With its combination of high bandwidth, low crosstalk, and programmable features, the AD8117ABPZ from Analog Devices Inc. offers a robust solution for high-speed signal routing requirements.
