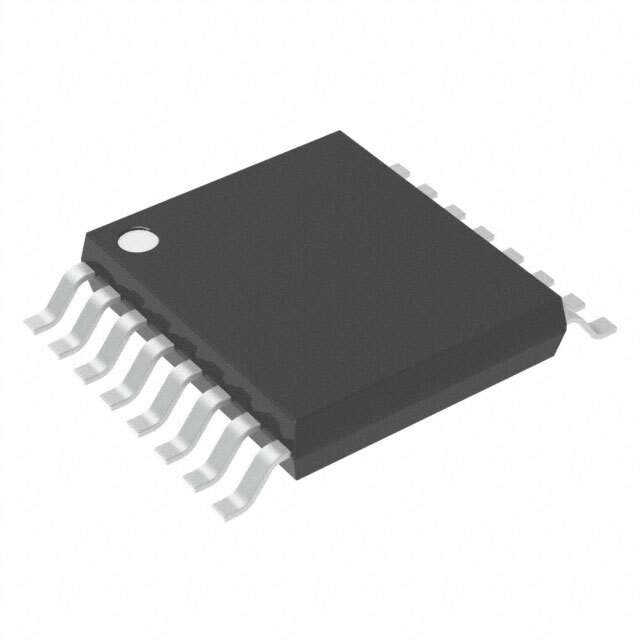

The AD8349AREZ is a high-performance, broadband quadrature modulator designed by Analog Devices Inc., a leader in the semiconductor industry. This device is ideal for modern RF and IF modulation needs, catering to a wide array of applications such as wireless communications, broadband data, and instrumentation.

Key Features

• Broadband Frequency Range: The AD8349AREZ operates over a wide frequency range, making it suitable for various RF and IF modulation schemes.
• High Linearity: It delivers excellent linearity, which is critical for maintaining signal integrity and reducing distortion in communication systems.
• Integration: The device integrates a voltage-controlled oscillator (VCO), a divide-by-2 stage, and differential I and Q mixers, streamlining the design process and reducing the need for external components.
• Low Noise Figure: The low noise figure of the AD8349AREZ ensures minimal signal degradation, which is essential for high-performance systems.
• Single Supply Operation: It can operate from a single supply voltage, simplifying the power supply design and reducing power consumption.

Applications

The AD8349AREZ is versatile and can be used in various applications, including:

• Wireless infrastructure (GSM, CDMA, WCDMA, TD-SCDMA)
• Cable modem termination systems
• Broadband wireless access systems (WiMAX, LTE)
• Direct broadcast satellite systems
• General-purpose RF and IF modulation

Product Specifications

With its robust feature set and flexible application range, the AD8349AREZ from Analog Devices Inc. stands out as a superior choice for designers looking to implement RF and IF modulation in their systems.
