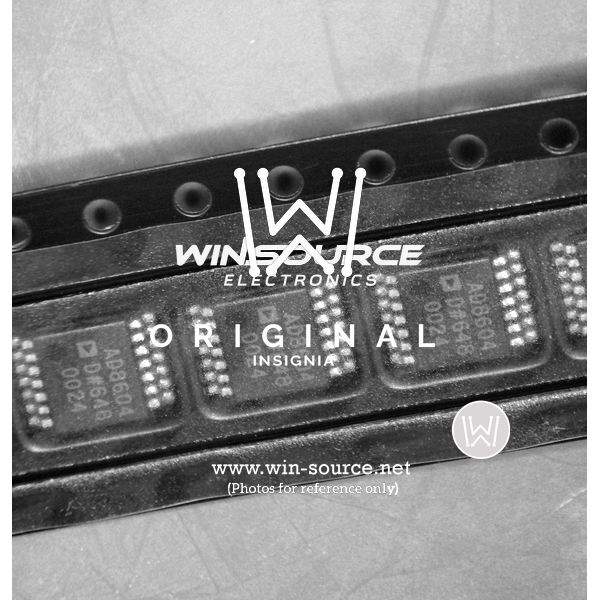

Product Overview: AD8604 Precision CMOS Operational Amplifier

The AD8604 from Analog Devices Inc. is a high-performance, quad operational amplifier that combines low cost with high precision and low power consumption. Designed to operate with a single or dual supply, it is well-suited for battery-powered applications and many other scenarios where power efficiency is paramount. The AD8604 is part of a family of single, dual, and quad amplifiers that offer rail-to-rail input and output swing while maintaining excellent noise and distortion specifications.

Key Features

• Rail-to-Rail Input/Output: The AD8604 provides a wide input voltage range that extends 200 mV beyond the supply rails and an output range that extends to within 10 mV of the rails. This feature ensures optimal performance in a variety of circuit configurations.
• Low Power Consumption: With a supply current of just 250 μA per amplifier, the AD8604 is an excellent choice for power-sensitive applications, without compromising on performance.
• Single or Dual Supply Operation: The device operates from a single 2.7 V to 5.5 V supply or from dual supplies of ±1.35 V to ±2.75 V, providing flexibility in a variety of system designs.
• High Precision: The AD8604 boasts a low input offset voltage and low input bias current, making it ideal for precision applications such as sensor interfacing and data acquisition systems.
• Wide Temperature Range: The operational temperature range of -40°C to +125°C allows for reliable operation in extreme environments.

Applications

The versatility of the AD8604 makes it suitable for a broad range of applications, including:

• Portable and battery-powered equipment
• Medical instrumentation
• Sensor signal conditioning
• Data acquisition systems
• Audio amplification
• Active filters
• Process control

With its combination of features, the AD8604 from Analog Devices Inc. is a robust solution for designers seeking a balance between performance and power efficiency. Its precision specifications and flexible power supply options make it a versatile choice for a multitude of electronic circuits and systems.
