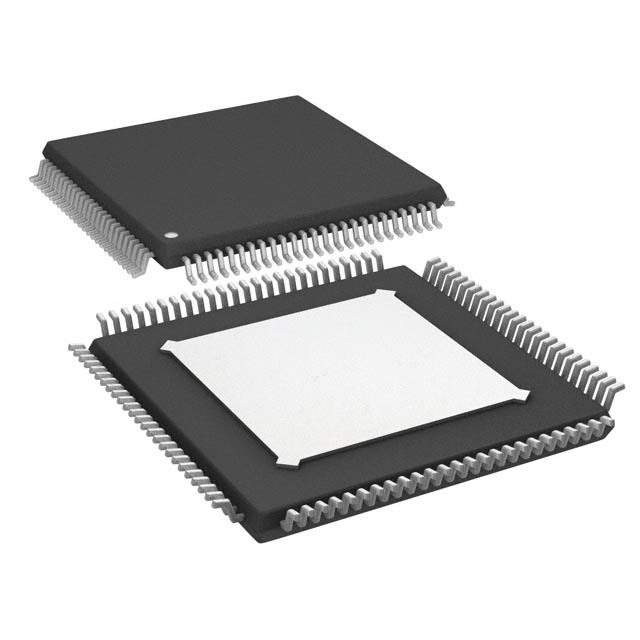

AD9446BSVZ-100

Part No AD9446BSVZ-100
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 16-Bit, 80/100 MSPS ADC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Tray
Resolution 16
Sampling Rate 100M
Number of Inputs 1
Input Type Differential
Data Interface LVDS - Parallel
Configuration S/H-ADC
Number of Converters 1
Architecture Pipelined
Reference Type External, Internal
Operating Supply Voltage 3.3V, 5V
Voltage - Supply, Digital 3 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C
Package 100-TQFP Exposed Pad
Manufacturer Package 100-TQFP-EP (14x14)
Win Source Part Number 1139078-AD9446BSVZ-100
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Balance
Family Name AD9446
Introduction Date May 02, 2005
ECCN 3A001.a.5.a.5
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian AD9446BSVZ-100 CAD Model

Description

Product Overview: AD9446BSVZ-100 by Analog Devices Inc.

The AD9446BSVZ-100 is a high-performance, 16-bit analog-to-digital converter (ADC) produced by the reputable Analog Devices Inc. Designed to provide precision and speed, this ADC is ideal for a wide range of applications, including medical imaging systems, communication infrastructure, and radar signal processing. With a sampling rate of up to 100 MSPS (Mega-Samples per Second), it captures high-frequency signals with remarkable accuracy.

Key Features

  • High Resolution: The 16-bit resolution of the AD9446BSVZ-100 ensures detailed digital representations of the input signals, providing the fidelity required for demanding applications.
  • High Sampling Rate: With a maximum sampling rate of 100 MSPS, this ADC is capable of converting analog signals to digital form very quickly, making it suitable for high-speed signal processing tasks.
  • Differential Inputs: The differential input structure enhances the noise immunity and allows for a wide dynamic range, which is crucial for maintaining signal integrity in noisy environments.
  • Low Power Consumption: Despite its high-speed operation, the AD9446BSVZ-100 is designed for efficient power usage, which is essential for portable and remote sensing applications.
  • Integrated Features: It comes with an on-chip track-and-hold circuit and a voltage reference, simplifying system design and reducing external component requirements.
  • Package Type: The product is offered in a 64-lead LFCSP (Lead Frame Chip Scale Package) that provides a compact footprint for space-constrained applications.

Applications

The versatility of the AD9446BSVZ-100 makes it suitable for various high-performance applications:

  • Medical Imaging Systems
  • Communications Infrastructure
  • Radar and Satellite Systems
  • Instrumentation and Test Equipment
  • Data Acquisition Systems

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD9446BSVZ-100 is no exception. It provides designers with a balance of performance, power efficiency, and functionality, making it a go-to choice for professionals seeking a robust ADC solution.

Availability and Support

The AD9446BSVZ-100 is available for purchase from Analog Devices Inc. and its authorized distributors. Comprehensive technical support and documentation, including datasheets and reference designs, are available to assist with integration and product development.
