Product Overview: AD9577BCPZ from Analog Devices Inc.

The AD9577BCPZ is a highly integrated clock generator and distribution solution manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This device is designed to provide a reliable and precise clocking solution for a wide array of applications, including communications infrastructure, networking, and industrial systems.

Key Features and Benefits

• Dual PLL Design: The AD9577BCPZ features a dual Phase-Locked Loop (PLL) architecture, enabling it to generate multiple high-quality clock outputs with low jitter and phase noise characteristics.
• Flexible Output Frequency Range: It supports a wide range of output frequencies, making it a versatile choice for various system requirements.
• Programmable Outputs: The device offers programmable clock outputs that can be configured to match specific system needs, enhancing its adaptability to different applications.
• Integrated Voltage Controlled Oscillator (VCO): The inclusion of an integrated VCO simplifies the design and reduces the need for external components, which can save board space and cost.
• Low Power Consumption: Designed with power efficiency in mind, the AD9577BCPZ operates with low power consumption, making it suitable for energy-sensitive applications.

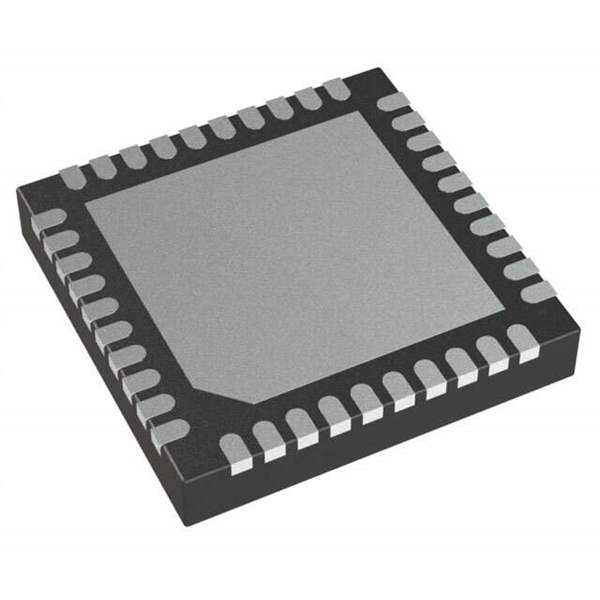

• Compact Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the device minimizes the footprint on the PCB and is ideal for space-constrained applications.

Applications

The AD9577BCPZ is well-suited for a variety of applications, including:

• Telecommunications equipment
• Networking hardware such as routers and switches
• Data storage systems
• Industrial control systems
• Test and measurement equipment

Technical Specifications

The AD9577BCPZ operates over an industrial temperature range and is available in a RoHS-compliant package. It requires a single power supply and provides a user-friendly interface for configuration and control. The device's performance and reliability are backed by Analog Devices Inc.'s commitment to high-quality semiconductor design and manufacturing.

For detailed technical specifications, application notes, and support resources, customers can visit the Analog Devices Inc. website or contact their local sales office.
