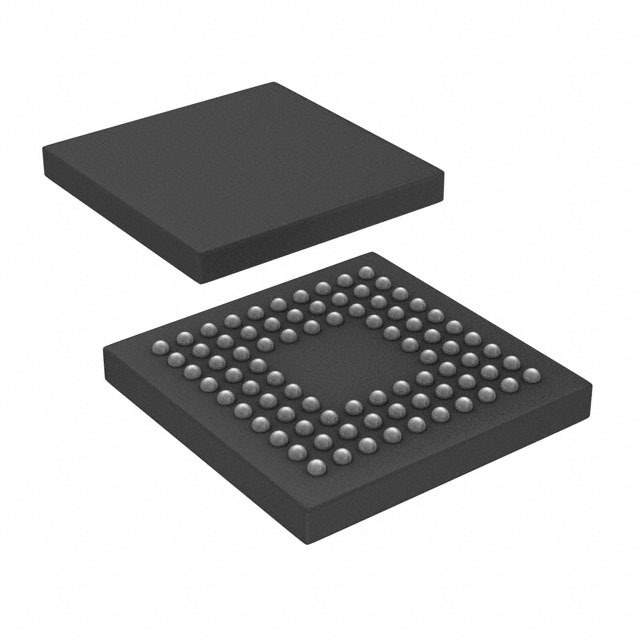

Product Overview: AD9977BBCZ from Analog Devices Inc.

The AD9977BBCZ is a high-performance, mixed-signal front-end (MxFE®) processor from Analog Devices Inc., designed for CCD and CMOS imaging applications. This integrated circuit (IC) is part of a comprehensive family of products that cater to the advanced needs of imaging technology, providing a robust and flexible solution for a wide range of imaging systems.

Key Features

• High-Speed Operation: The AD9977BBCZ is capable of operating at high speeds, making it suitable for high-resolution and fast frame rate imaging applications.
• Low Noise Performance: Engineered to deliver excellent image quality, the device features low noise amplifiers and 14-bit A/D converters that ensure precise and clear image capture.
• Programmable Gain Amplifier (PGA): The on-chip PGA allows for fine-tuning of the analog signal before A/D conversion, providing greater flexibility in sensor matching and signal optimization.
• Correlated Double Sampling (CDS): The CDS function reduces sensor noise and improves image contrast by subtracting the reset level of the pixel from the video level.
• Flexible Interface: The IC provides a flexible digital interface that can be easily integrated with a variety of image processors and microcontrollers.

Applications

• Digital Still Cameras
• Security Cameras
• Industrial and Medical Imaging Systems
• Machine Vision
• Scientific Imaging

Technical Specifications

The AD9977BBCZ features a dual-channel architecture that supports both CCD and CMOS sensors. It includes an integrated timing generator that simplifies the design by reducing the need for external timing components. The device operates on a single 3.3V power supply, minimizing power consumption and making it suitable for portable applications. It is available in a compact, surface-mount package that is designed for space-constrained applications.

With its advanced features and reliable performance, the AD9977BBCZ from Analog Devices Inc. represents a top-tier choice for designers looking to create sophisticated imaging solutions. Its combination of speed, precision, and flexibility makes it an essential component in the development of cutting-edge imaging technology.
