Product Overview: AD9985KSTZ-140 by Analog Devices Inc.

The AD9985KSTZ-140 is a high-performance, low-power, 8-bit analog-to-digital interface designed by Analog Devices Inc. This cutting-edge product is specifically tailored for video applications that demand high quality and reliability. It is an ideal solution for advanced television and panel applications, including flat panel displays, progressive scan TVs, and projectors.

The AD9985KSTZ-140 features a triple analog channel input, capable of handling video signals with speeds up to 140 MSPS (mega samples per second), making it suitable for high-resolution video processing. The device integrates a PLL (Phase Locked Loop) that can generate a pixel clock from an HSYNC signal, simplifying the design of display systems by reducing the number of components required.

With its on-chip clamp and gain registers, the AD9985KSTZ-140 allows for easy adjustment of the video signal, ensuring optimal picture quality. The product also includes a sync processing unit that can handle both SOG (Sync-On-Green) and separate H/V (Horizontal/Vertical) syncs, providing great flexibility in interfacing with a wide range of video sources.

Key features of the AD9985KSTZ-140 include:

• Triple 8-bit ADC with speeds up to 140 MSPS
• Integrated PLL for pixel clock generation
• On-chip clamp and gain control
• Sync processing for SOG and separate H/V syncs
• Low power operation
• 5 V tolerant TTL inputs
• Programmable power-down feature

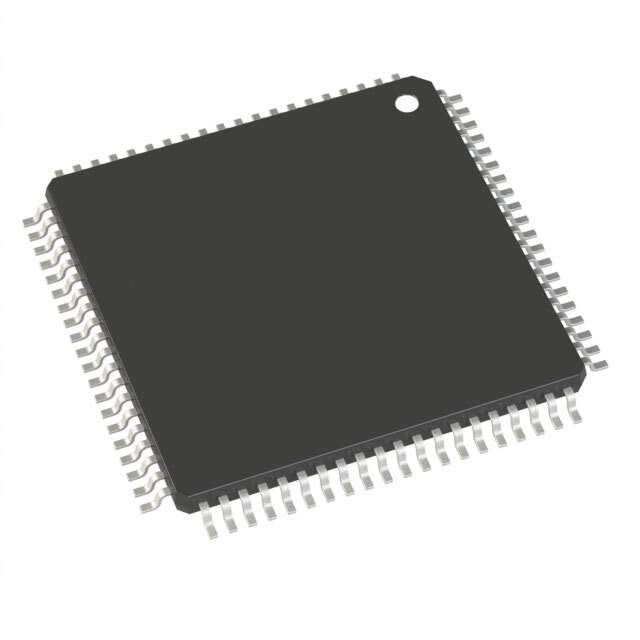

Moreover, the AD9985KSTZ-140 is available in a compact, surface-mount LQFP (Low Profile Quad Flat Package) that is designed for space-constrained applications. The device's power-down feature allows additional power savings, making it an energy-efficient choice for modern electronic systems.

Overall, the AD9985KSTZ-140 from Analog Devices Inc. represents a blend of performance, flexibility, and efficiency. It is a reliable component for developers looking to create high-quality video systems with stringent power and space requirements.
