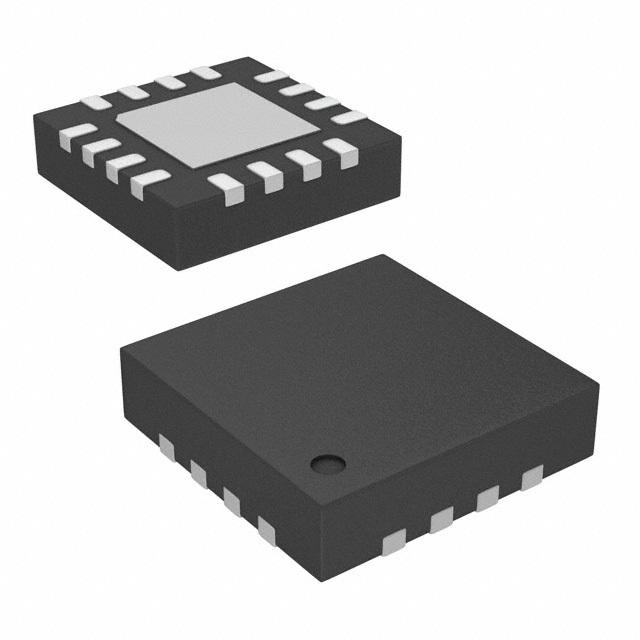

The ADG1633BCPZ-REEL7 is a robust, high-performance analog switch from Analog Devices Inc., designed to cater to a wide array of applications requiring efficient signal routing. This component is a part of their well-regarded switch and multiplexer product line, and it is crafted to deliver reliability and versatility in a compact LFCSP (Lead Frame Chip Scale Package) form factor.

Key Features

• Triple Single-Pole Double-Throw (SPDT): The ADG1633 features three independently controllable SPDT switches, offering flexibility in signal routing for complex circuit designs.
• Low On-Resistance: With a typical on-resistance of just 1.5 ohms, this switch ensures minimal signal attenuation, making it ideal for precision applications.
• Single Supply Operation: It operates on a single supply voltage ranging from +1.8V to +5.5V, accommodating a variety of logic-level requirements and simplifying power supply design.
• 3.3V/5V Logic Compatibility: The switch logic inputs are compatible with both 3.3V and 5V logic levels, providing ease of integration into mixed-voltage systems.
• Low Power Consumption: The ADG1633 is optimized for low power consumption, which is critical for battery-operated devices and power-sensitive applications.
• Fast Switching Times: It boasts fast switching times (tON and tOFF) of typically 20 ns and 10 ns, respectively, ensuring quick response in time-sensitive circuits.
• Extended Temperature Range: This device is operational over an extended temperature range of -40°C to +125°C, suitable for industrial environments.

Applications

The ADG1633BCPZ-REEL7 is a versatile component suitable for various applications, including:

• Audio and Video Signal Routing
• Communication Systems
• Data Acquisition Systems
• Relay Replacement
• Medical Equipment
• Automatic Test Equipment

With its robust design and comprehensive features, the ADG1633BCPZ-REEL7 from Analog Devices Inc. is a reliable choice for designers looking to optimize their signal routing with a high-quality analog switch. Its small footprint and compatibility with various logic levels make it an excellent choice for space-constrained applications requiring high performance and efficiency.
