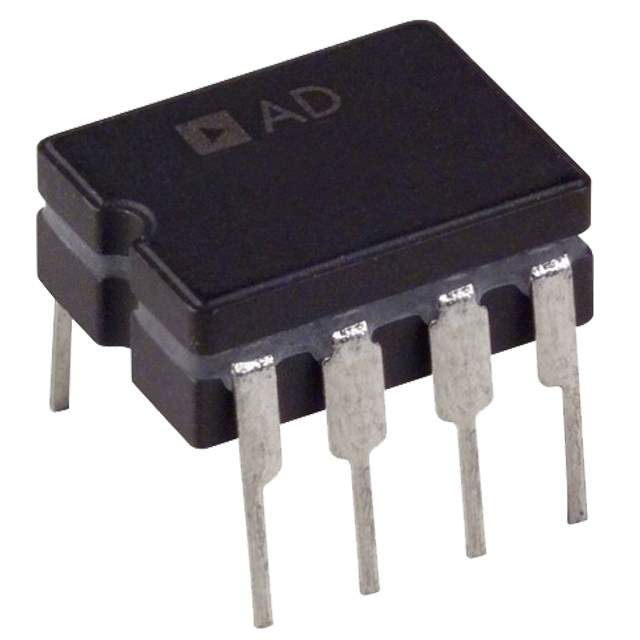

The ADG419TQ is a high-performance, precision monolithic analog switch from Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This switch is designed to deliver superior switch characteristics for critical applications in test equipment, data acquisition systems, and communication circuits.

Key Features

• High Precision: The ADG419TQ offers exceptional signal integrity with low on-resistance (RON) and RON flatness, ensuring minimal signal distortion and consistent performance across the full analog signal range.
• Low Power Consumption: With an ultra-low power dissipation, this switch is ideal for battery-powered and portable devices, helping to extend operational life without sacrificing performance.
• Single Supply Operation: It operates from a single supply voltage ranging from +10 V to +30 V or a dual supply of ±5 V to ±15 V, providing flexibility in various circuit designs.
• Fast Switching: The device features fast switching times, with a tON of 175 ns and a tOFF of 145 ns, making it suitable for applications requiring high-speed operation.
• Break-Before-Make Switching: This functionality ensures that there is no momentary short circuit when switching between two channels, enhancing the reliability of the device.
• Low Charge Injection: The ADG419TQ exhibits very low charge injection, which minimizes the transient disturbances in the signal path when switching, thus preserving signal fidelity.

Applications

The ADG419TQ's robust feature set makes it a versatile component suitable for a wide range of applications:

• Sample and Hold Circuits
• Test Equipment and Instrumentation
• Communication Systems
• Data Acquisition Systems
• Analog and Digital Multiplexing

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the ADG419TQ is no exception. It is designed to meet stringent industry standards, ensuring long-term performance and stability in demanding environments.

For engineers and designers looking for a reliable and high-performance analog switch, the ADG419TQ from Analog Devices Inc. offers the perfect blend of precision, speed, and flexibility to meet the needs of sophisticated electronic systems.
