The ADG509ABQ is a high-performance, monolithic CMOS analog multiplexer from Analog Devices Inc. Designed to deliver precision signal handling and routing, this device is an ideal choice for a wide range of applications, including data acquisition systems, test equipment, and communication systems.

Key Features

• Multiple Channels: The ADG509ABQ features four differential or eight single-ended channels, providing versatility for various signal configurations.
• Low Power Consumption: With CMOS technology, this multiplexer offers low power dissipation, making it suitable for battery-powered and portable devices.
• High Accuracy: It ensures minimal signal distortion with its low on-resistance and on-resistance flatness.
• Wide Supply Range: The device operates from a single +15V or dual ±15V power supply, accommodating a variety of system requirements.
• Break-Before-Make Switching: This feature prevents momentary shorting when switching between channels, preserving signal integrity.

Performance Specifications

The ADG509ABQ boasts excellent performance characteristics that include a fast transition time, low charge injection, and high off-isolation. These specifications ensure that the multiplexer can handle high-speed signals without introducing significant noise or interference.

Package and Reliability

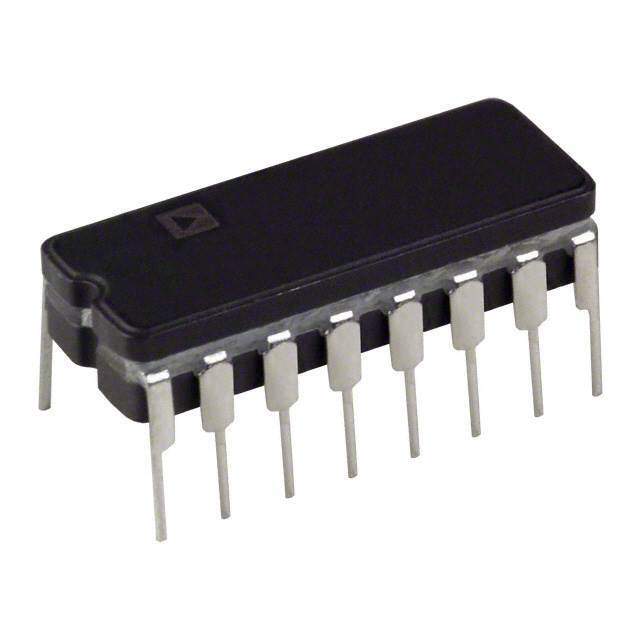

Encased in a robust 16-pin CERDIP (Ceramic Dual In-line Package), the ADG509ABQ is designed for durability and long-term reliability. Its operating temperature range from -40°C to +85°C makes it suitable for industrial environments.

Applications

The versatility of the ADG509ABQ makes it a suitable component for many applications, including:

• Audio and video routing
• Automatic test equipment
• Data acquisition systems
• Process control systems
• Communication systems

Conclusion

In summary, the ADG509ABQ from Analog Devices Inc. is a reliable and efficient solution for precision analog signal multiplexing. Its combination of low power consumption, high accuracy, and flexible operation make it a top choice for engineers and designers looking to optimize their systems for performance and reliability.
