Same model may have multiple batches, images only for reference.

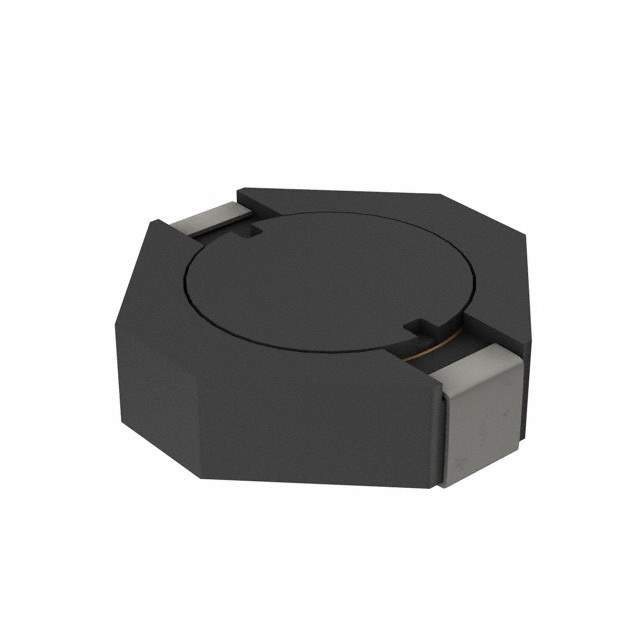

SD52-4R7-R Real Image
Same model may have multiple batches, images only for reference.

SD52-4R7-R

Part No SD52-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.63A 56.8 MOHM
Datasheet
SD52-4R7-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.63A
Current - Saturation 1.64A
DC Resistance (DCR) 56.8 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 113294-SD52-4R7-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD52-4R7-R CAD Model

Description

The Eaton Bussmann 113294-SD52-4R7-R is a wirewound type inductor, coil, and choke component.

  • Win Source Part Number: 113294-SD52-4R7-R
  • Package: Reel-TR
  • Current Rating: 1.63A
  • Inductance: 4.7μH
  • Height-Seated: 0.079 inches (2.00mm)
  • Mount: SMD (SMT) technology
  • Tolerance: ±20%
  • Material-Core: Ferrite
  • Current-Saturation: 1.64A
  • Frequency-Self Resonant: Not available
  • Frequency-Test: 100kHz
  • DC Resistance (DCR): 56.8 mOhm
  • Status: Active
  • Temperature Range: -40°C to 125°C
  • Supply and Demand: Currently in balance
