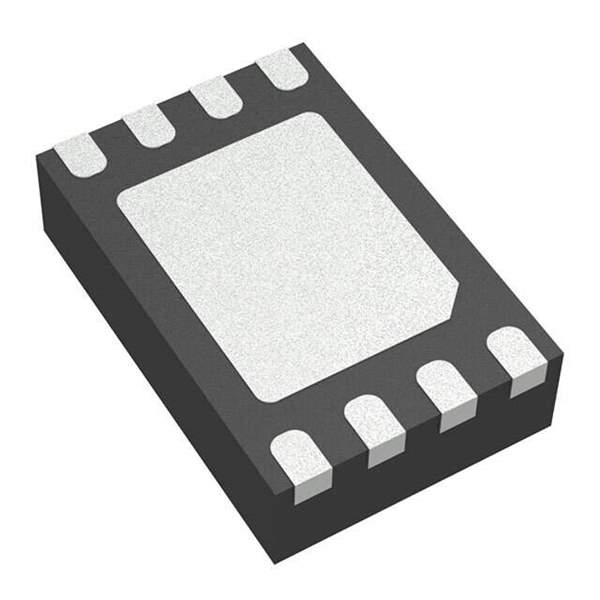

Analog Devices Inc. ADG721ACPZ-REEL7

The ADG721ACPZ-REEL7 is a high-performance CMOS analog switch from Analog Devices Inc., a renowned leader in the semiconductor industry. This device is part of the ADG721 series, which is well-suited for a wide range of applications that require low on-resistance, low capacitance, and fast switching times.

Encased in a compact LFCSP (Lead Frame Chip Scale Package) with 10 pins, the ADG721ACPZ-REEL7 is designed for space-conscious applications. This package is not only space-efficient but also offers improved thermal performance and reduced inductance, which is critical for maintaining signal integrity in high-speed applications.

The switch operates on a single 1.8V to 5.5V power supply, making it versatile for both portable and stationary applications. The low power consumption of this device is particularly beneficial for battery-powered devices where power efficiency is crucial. With a typical power supply current of less than 0.1µA, the ADG721ACPZ-REEL7 is an excellent choice for power-sensitive designs.

The ADG721ACPZ-REEL7 features a bilateral signal path, which allows signals to flow in both directions, and it has a broad signal range that encompasses the power supply rails. This makes the switch highly flexible for various signal routing applications. The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion, which is essential for precision analog applications.

One of the key advantages of this switch is its fast switching times, with a typical t_ON of 13ns and t_OFF of 10ns. This rapid switching capability makes the ADG721ACPZ-REEL7 suitable for applications that require high-speed signal processing, such as data acquisition systems, communication devices, and audio/video switching.

Furthermore, the ADG721ACPZ-REEL7 comes in a tape and reel format, denoted by the "REEL7" suffix, which facilitates automated assembly processes, making it a convenient choice for high-volume manufacturing.

In summary, the ADG721ACPZ-REEL7 from Analog Devices Inc. is a high-quality, versatile analog switch that offers low on-resistance, low power consumption, and fast switching times, all packed in a small-footprint package. It is an ideal component for a multitude of applications where efficient and reliable signal routing is required.
