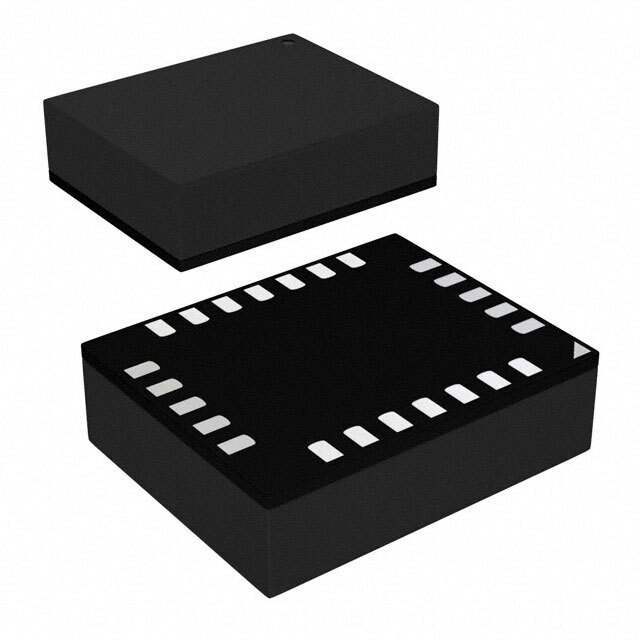

ADGM1144BCCZ-RL7

Name: ADGM1144BCCZ-RL7
Brand: Analog Devices Inc.
SKU: WS1306346
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ADGM1144BCCZ-RL7
Manufacturer	Analog Devices Inc.
Catalog	RF Switches
Description	IC RF SWITCH SP4T 18GHZ 24LGA
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1306346-ADGM1144BCCZ-RL7
Category	RF and Wireless RF Switches
Manufacturer	Analog Devices Inc.
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
RF Type	General Purpose
Topology	Absorptive
Circuit	SP4T
Frequency Range	DC ~ 18GHz
Isolation	-13dB
Insertion Loss	-1.7dB
Ultra Librarian 3D Model	Ultra Librarian ADGM1144BCCZ-RL7 CAD Model

Alternative Products

Description

Fully operational from DC to 18 GHz (typical)
RF performance characteristics
Insertion loss: −1.7 dB (typical) at 16 GHz
Isolation: −18.5 dB (typical) at 6 GHz
IIP3: 73 dBm (typical)
RF power: 33 dBm (maximum)
On resistance: 1.9 Ω (typical)
DC current handling: 200 mA
Actuation lifetime: 200 million cycles (minimum)
On switching time: 200 µs (typical)
Integrated 3.3 V driver for simple control with parallel and SPI interface
Independently controllable switches
Space saving integrated passive components
Eliminates floating nodes on the switch
5 mm × 4 mm × 1.0 mm, 24-lead land grid array package
Temperature range: −40°C to +85°C
Switch position is unknown with no supply voltage
