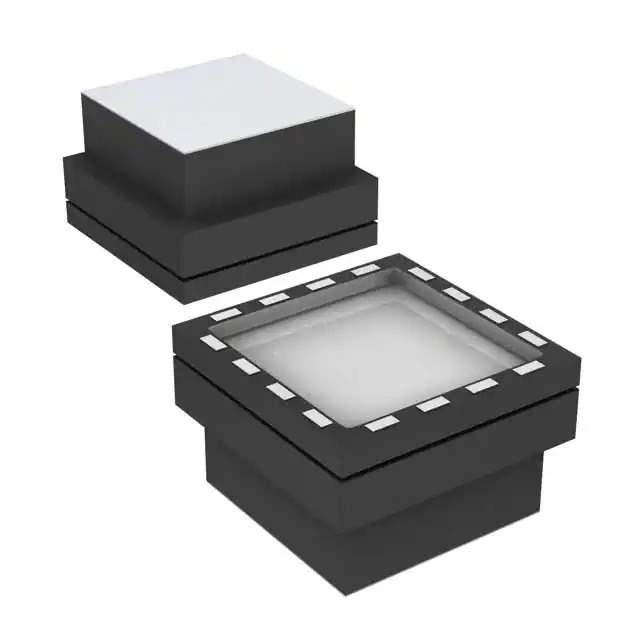

ADIS16060BCCZ - High-Performance Yaw Rate Gyroscope from Analog Devices Inc.

The ADIS16060BCCZ is a state-of-the-art yaw rate gyroscope module designed and manufactured by Analog Devices Inc., a leader in high-performance signal processing solutions. This compact, precision angular rate sensor is engineered to meet the demanding needs of industrial and instrumentation applications, providing reliable and accurate yaw rate measurements with a high degree of stability and responsiveness.

Key Features

• High Performance: The ADIS16060BCCZ offers exceptional performance with a yaw rate range of ±300°/sec and a sensitivity of 20 mV/°/sec, ensuring precise and accurate readings for critical applications.
• Compact Design: With a small form factor in a BCCZ package, this gyroscope is ideal for space-constrained applications without compromising on performance.
• Digital Interface: The device features a digital SPI-compatible serial interface, which simplifies the integration process with microcontrollers and reduces the complexity of system design.
• Temperature Sensing: An onboard temperature sensor allows for temperature compensation, ensuring stable performance across a wide operating temperature range.
• Robust Construction: Built to withstand harsh environments, the ADIS16060BCCZ is encapsulated in a hermetically sealed ceramic package, providing excellent durability and longevity.

Applications

The ADIS16060BCCZ is versatile and can be used in a variety of applications, including:

• Platform stabilization and control
• Navigation systems
• Robotics
• Automotive safety systems
• Industrial equipment monitoring

Technical Specifications

Some of the technical specifications of the ADIS16060BCCZ include:

• Supply Voltage: 4.75 V to 5.25 V
• Operating Temperature Range: -40°C to +85°C
• Bandwidth: 330 Hz
• Shock Survivability: 2000 g

The ADIS16060BCCZ from Analog Devices Inc. is an excellent choice for designers and engineers looking for a reliable and high-performance yaw rate gyroscope. Its robust design, combined with its advanced features, ensures that it can meet the stringent requirements of a wide range of applications, delivering precise and dependable measurements every time.
