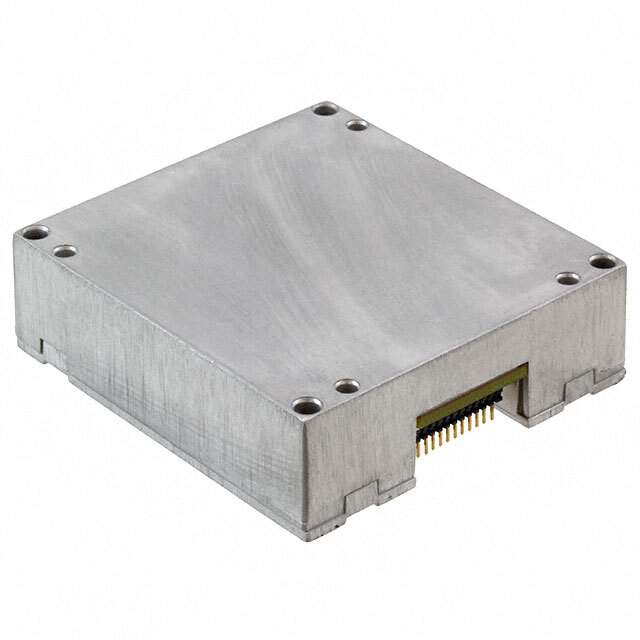

ADIS16485BMLZ - Precision Tactical Grade IMU by Analog Devices Inc.

The ADIS16485BMLZ is a high-performance, multiaxis Inertial Measurement Unit (IMU) designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This precision tactical-grade IMU integrates a triaxial gyroscope, a triaxial accelerometer, a triaxial magnetometer, and a pressure sensor to provide a comprehensive sensing solution for advanced motion and navigation systems.

Key Features

• Triaxial Gyroscope: The ADIS16485BMLZ features a gyroscope with a dynamic range of ±450°/sec and excellent in-run bias stability, making it suitable for precision applications that require accurate angular rate sensing.
• Triaxial Accelerometer: The accelerometer provides a measurement range of ±18 g, ensuring robust linear acceleration data even under high-vibration conditions.
• Triaxial Magnetometer: The integrated magnetometer offers environmental magnetic field sensing capabilities, which can be used for heading determination and magnetic disturbance detection.
• Barometric Pressure Sensor: The onboard pressure sensor allows for altitude measurements, enhancing the IMU's utility in 3D navigation solutions.
• Factory Calibration: Each device is calibrated for sensitivity, bias, alignment, and temperature to ensure optimal performance and consistency across different environments.
• High Data Rates: The IMU supports data rates up to 2460 Hz, enabling real-time motion tracking for dynamic applications.
• SPI Interface: A serial peripheral interface (SPI) provides a direct link for high-speed data transfer and configuration of the device.
• Compact and Rugged: Housed in a compact, rugged LGA package, the ADIS16485BMLZ is built to withstand harsh environments typically encountered in aerospace and defense applications.

Applications

The ADIS16485BMLZ is ideally suited for a range of applications that demand high precision and reliability, including:

• Navigation and control systems for unmanned vehicles
• Platform stabilization for cameras and antennas
• Robotics and industrial equipment monitoring
• Flight control systems for aircraft and UAVs
• Instrumentation and test measurements

With its robust feature set and high level of integration, the ADIS16485BMLZ by Analog Devices Inc. represents a cutting-edge solution for advanced motion and navigation challenges. Its precision sensing capabilities ensure that it remains a preferred choice for engineers and designers in need of a reliable IMU for their critical applications.
