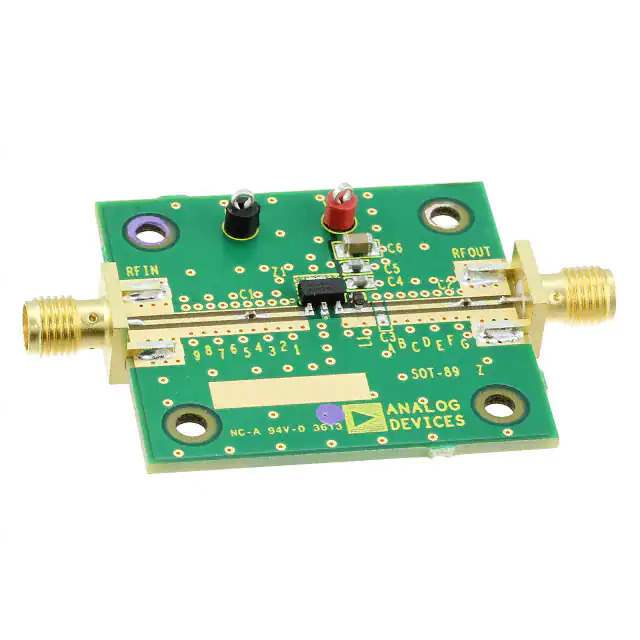

The ADL5602-EVALZ from Analog Devices Inc. is a robust evaluation board designed for the ADL5602, a high-performance RF/IF gain block amplifier that operates within the frequency range of 1800 MHz to 2700 MHz. This evaluation platform is an essential tool for designers and engineers looking to test the capabilities and features of the ADL5602 amplifier in various RF applications including base stations, satellite communications, and point-to-point radios.

Key Features of the ADL5602-EVALZ

• Frequency Range: Designed to facilitate testing in the 1800 MHz to 2700 MHz range, making it suitable for a wide array of RF applications.
• Gain: Provides a fixed gain of 15 dB which is beneficial for consistent signal amplification across the supported frequency band.
• Input/Output Matching: The board is optimized for 50-ohm input and output impedance, ensuring minimal reflection and compatibility with standard test equipment.
• Power Supply: Operates on a single 5V supply, simplifying power requirements for ease of use during evaluation.
• User-Friendly: The evaluation board is equipped with SMA connectors for convenient connection to RF test setups.

Performance and Ease of Use

The ADL5602-EVALZ is tailored to deliver exceptional performance with minimal external components required. Its plug-and-play nature allows for immediate use, enabling quick and accurate assessments of the ADL5602 amplifier's performance. The board's layout is carefully designed to showcase the amplifier's low noise figure and excellent linearity, which are critical parameters in high-frequency signal chains.

Applications

Due to its broad frequency range and high gain, the ADL5602-EVALZ is an ideal solution for evaluating amplifier circuits in various applications, including but not limited to LTE, GSM, WCDMA, TD-SCDMA base stations, RF instrumentation, and microwave radio links. Its versatility and high performance make it an invaluable tool for development and testing in the RF domain.
