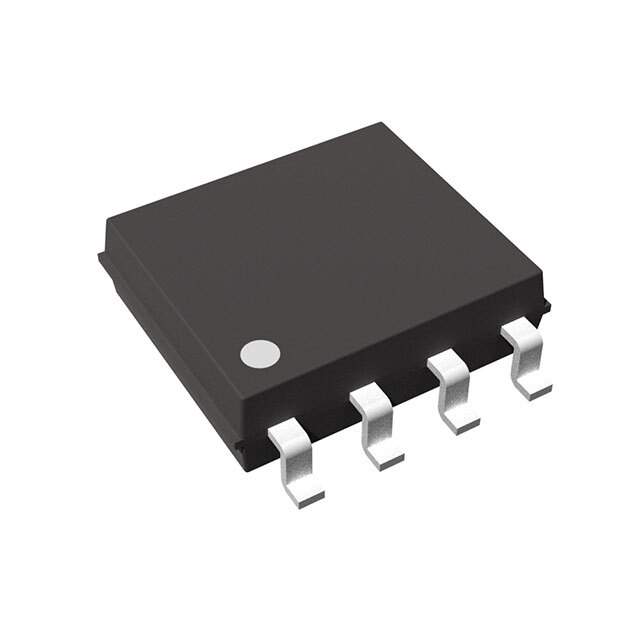

R1242S001C-E2-FE Real Image1 R1242S001C-E2-FE Real Image2
Same model may have multiple batches, images only for reference.
R1242S001C-E2-FE Real Image1 R1242S001C-E2-FE Real Image2
R1242S001C-E2-FE Real Image1 R1242S001C-E2-FE Real Image2
Same model may have multiple batches, images only for reference.

R1242S001C-E2-FE

Part No R1242S001C-E2-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description 3A 30V INPUT PWM STEP-DOWN DCDC  /  Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr Nisshinbo Micro Devices Inc.
Series R1242S
Package Tape & Reel (TR)
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 5V
Voltage - Input (Max) 30V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 15V
Current - Output 3A
Frequency - Switching 330kHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 8-HSOP-E
Base Product Number R1242
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 978140-R1242S001C-E2-FE
Ultra Librarian 3D Model Ultra Librarian R1242S001C-E2-FE CAD Model

Description

This electronic component is manufactured by Nisshinbo Micro Devices Inc. and has a Win Source Part Number of 978140-R1242S001C-E2-FE. It is an integrated circuit that is a voltage regulator with a DC-DC switching regulator. It belongs to the Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators category and has a low popularity. It is a step-down regulator with a current output of 3A and an adjustable output type. The topology is buck, and the frequency switching is 330kHz. The voltage input range is 5V to 30V, and the voltage output range is 0.8V to 15V.
