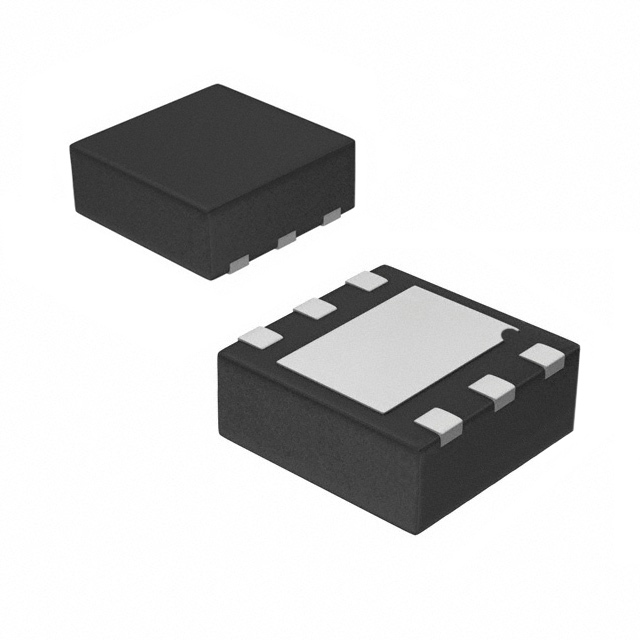

Same model may have multiple batches, images only for reference.
ADL8121ACPZN-R7 Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADL8121ACPZN-R7

Part No ADL8121ACPZN-R7
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC AMP RADAR 25MHZ-12GHZ 6LFCSP
Datasheet
ADL8121ACPZN-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Amplifiers
Manufacturer Analog Devices Inc.
Series ADL8121
Packaging Tape & Reel (TR)
Part Status Active
Frequency 25MHz ~ 12GHz
P1dB 21dBm
Gain 17dB
Noise Figure 3.5dB
RF Type Radar
Voltage - Supply 2V ~ 6V
Current - Supply 95mA
Test Frequency 25MHz ~ 10GHz
Mounting Type Surface Mount
Package / Case 6-VDFN Exposed Pad, CSP
Supplier Device Package 6-LFCSP (2x2)
Base Product Number ADL8121
Ultra Librarian 3D Model Ultra Librarian ADL8121ACPZN-R7 CAD Model
