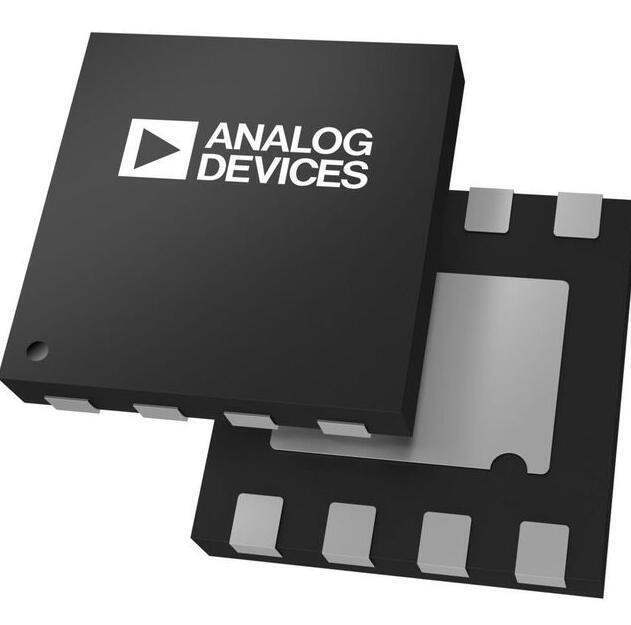

Same model may have multiple batches, images only for reference.

ADL8140ACPZN

Get a Quote

Part No	ADL8140ACPZN
Manufacturer	Analog Devices Inc.
Catalog	RF Amplifiers
Description	10 TO 18 GHZ SATCOM LNA
Datasheet	ADL8140ACPZN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Description

The ADL8140 is a low noise amplifier (LNA) that operates from 10 GHz to 18 GHz.
Typical gain and noise figure are 27.5 dB and 1 dB, respectively, from 12 GHz to 15 GHz. Output power for 1 dB compression (OP1dB) and output third-order intercept (OIP3), are 8 dBm and 23 dBm, respectively, from 12 GHz to 15 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 35 mA from a 1.5 V supply voltage (VDD). The ADL8140 also features inputs/outputs that are AC-coupled and internally matched to 50 Ω.
