Product Overview: ADM3101EACPZ-250 from Analog Devices Inc.

The ADM3101EACPZ-250 is a robust, high-speed transceiver module designed by Analog Devices Inc., a leader in the semiconductor industry. This product is part of their extensive range of interface ICs, which are renowned for their reliability and performance in challenging environments. The ADM3101EACPZ-250 is specifically tailored for serial communication protocols, providing a reliable solution for data transmission over RS-232 interfaces.

Key Features

• High Data Rates: The device supports data rates up to 250 kbps, making it suitable for a variety of high-speed applications.
• Enhanced ESD Protection: It offers an impressive Electrostatic Discharge (ESD) protection level of ±15 kV on the RS-232 transceiver pins, ensuring robustness against static electricity.
• Low Power Consumption: With a low operational current of just 300 µA and a 1 µA shutdown current, the ADM3101EACPZ-250 is optimized for power-sensitive applications.
• Wide Operating Voltage: The transceiver operates from a single 3.0 V to 5.5 V power supply, providing flexibility in various system designs.
• Temperature Range: It is designed to operate over an industrial temperature range of -40°C to +85°C, ensuring reliability in extreme conditions.

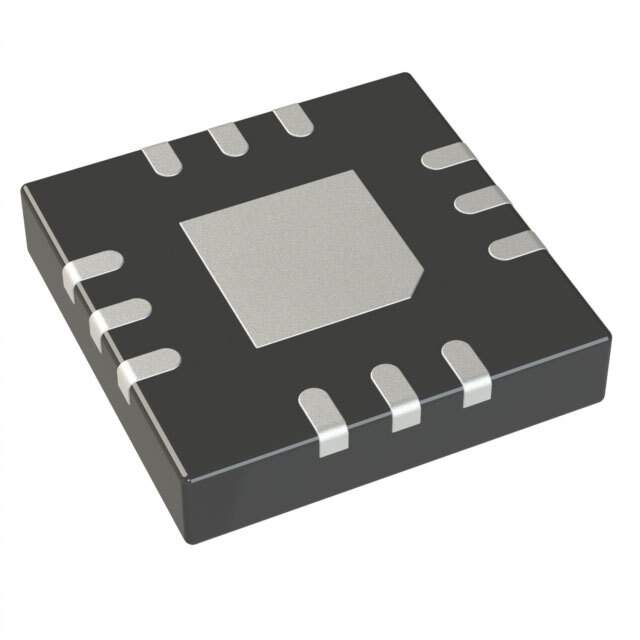

• Space-Saving Package: The device comes in a compact 16-lead LFCSP (Lead Frame Chip Scale Package), which significantly reduces the required PCB space.

Applications

The ADM3101EACPZ-250 is ideal for a wide array of applications that require reliable data transmission. It is commonly used in industrial and instrumentation applications, point-of-sale systems, and in peripherals of computer systems. Its robustness also makes it a suitable choice for automotive diagnostics, fieldbus communications, and other harsh environment applications.

Product Reliability

Analog Devices Inc. is committed to providing high-quality products. The ADM3101EACPZ-250 transceiver is built to meet stringent industry standards, ensuring both high performance and durability for the end user. With its advanced features and proven reliability, this product is an excellent choice for designers looking to incorporate a dependable RS-232 communication interface into their systems.

For more detailed specifications and application notes, interested parties are encouraged to visit the Analog Devices Inc. website or contact their sales and support team for further assistance.
