ADM3232EARNZ-REEL by Analog Devices Inc.

The ADM3232EARNZ-REEL is a high-performance, low-voltage, dual-channel RS-232/V.28 transceiver from the renowned manufacturer Analog Devices Inc. This product is specifically designed to operate with a single 3.3 V power supply, making it an ideal choice for portable and compact devices where power efficiency is a critical factor.

With its integrated ESD (Electrostatic Discharge) protection, the ADM3232EARNZ-REEL is capable of withstanding up to ±15 kV on the RS-232 input/output lines, ensuring robust performance and reliability even in harsh electrical environments. This feature significantly enhances the durability of the end product and provides peace of mind for manufacturers and consumers alike.

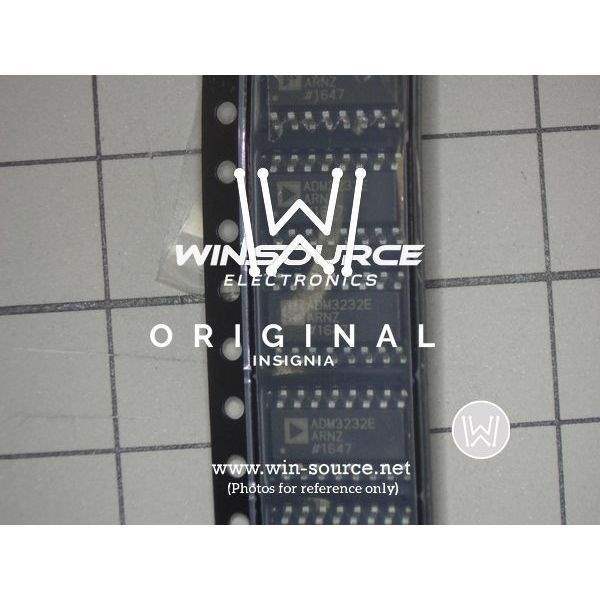

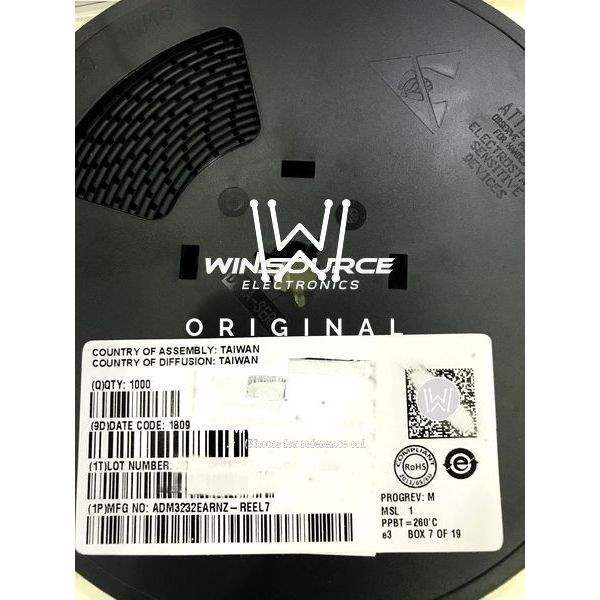

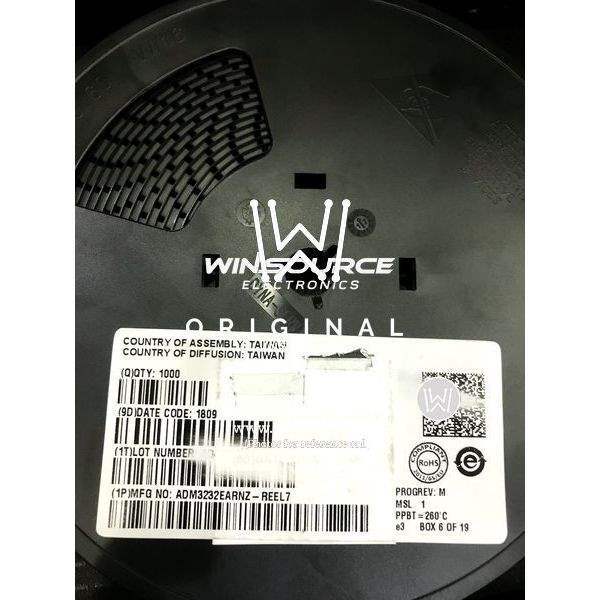

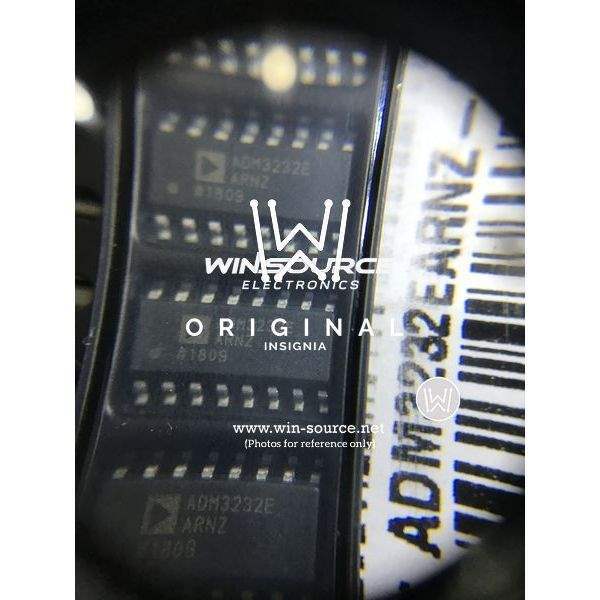

The device comes in a compact 16-lead SOIC (Small Outline Integrated Circuit) package, which is designed for space-constrained applications. The "REEL" suffix indicates that the product is provided in tape and reel packaging, which is suitable for automated pick-and-place manufacturing processes, thus streamlining the assembly workflow for high-volume production.

The ADM3232EARNZ-REEL transceiver is equipped with two drivers and two receivers, supporting full-duplex communication, which is essential for applications requiring simultaneous data transmission and reception. This makes it a versatile choice for a variety of communication interfaces, including data terminals, PDAs, GPS receivers, and other devices that utilize RS-232 protocols.

Furthermore, the device boasts a low dropout transmitter output stage, enabling true RS-232 performance from a 3.3 V supply with a nominal data rate of 250 kbps. This combination of low power consumption and high data rate capability makes the ADM3232EARNZ-REEL a highly efficient solution for battery-powered and portable applications.

Analog Devices Inc. has a reputation for producing high-quality integrated circuits, and the ADM3232EARNZ-REEL is no exception. Its reliable performance, ESD protection, and low-voltage operation make it an excellent choice for designers seeking a transceiver that meets stringent power and space requirements without compromising on functionality or robustness.
