ADM3311EARUZ-REEL7 - Analog Devices Inc.

The ADM3311EARUZ-REEL7 is a high-performance, low-power, single-transceiver RS-232 interface device from the renowned manufacturer Analog Devices Inc. Designed to operate from a single 3.3V power supply, this interface IC is perfect for applications requiring efficient communication through serial ports.

One of the key features of the ADM3311EARUZ-REEL7 is its low-voltage operation, which allows it to be used in portable devices, such as PDAs, laptops, and other battery-operated equipment, without the need for additional level shifters. The device is capable of running at data rates up to 250 kbps, making it suitable for a wide range of data transmission applications.

This transceiver includes a single driver and a single receiver, which can be connected to the RS-232 port of a microcontroller or any other UART port for serial communication. The ADM3311EARUZ-REEL7 also features a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3.3V power supply, and a dual charge pump that enables data communication with RS-232 compatible devices without compromising signal quality.

Furthermore, the ADM3311EARUZ-REEL7 is equipped with a 1.0uF external charge pump capacitor, which reduces the board space requirement. The device also includes an automatic power-down function that powers down the on-chip power-supply and driver circuits when a connected peripheral is turned off or the RS-232 cable is removed, thus conserving power for battery-powered systems.

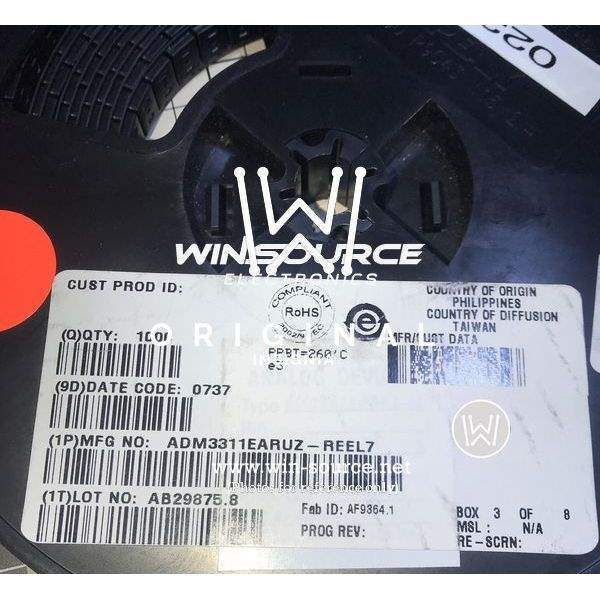

Offered in a compact, 28-lead TSSOP package, the ADM3311EARUZ-REEL7 is provided in tape and reel form, making it ideal for automated manufacturing processes. Analog Devices Inc. ensures that this product meets the stringent quality and reliability standards expected of their components, which makes it a reliable choice for engineers and designers working on serial communication interfaces.

Whether you're designing a new system or upgrading an existing one, the ADM3311EARUZ-REEL7 by Analog Devices Inc. provides a robust, efficient, and cost-effective RS-232 communication solution.
