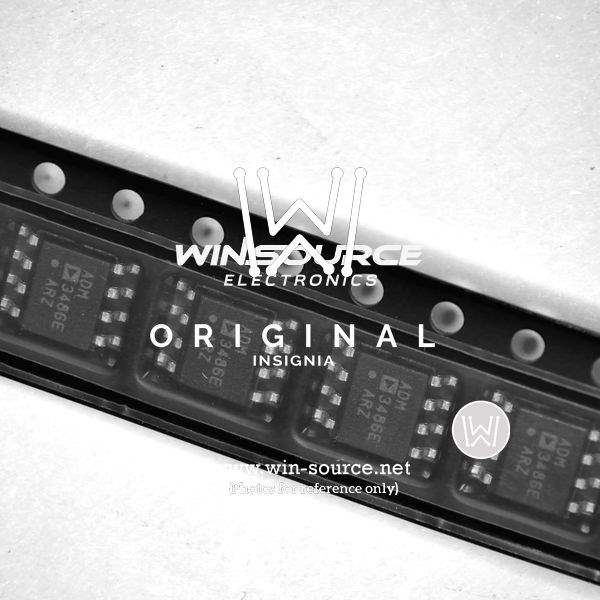

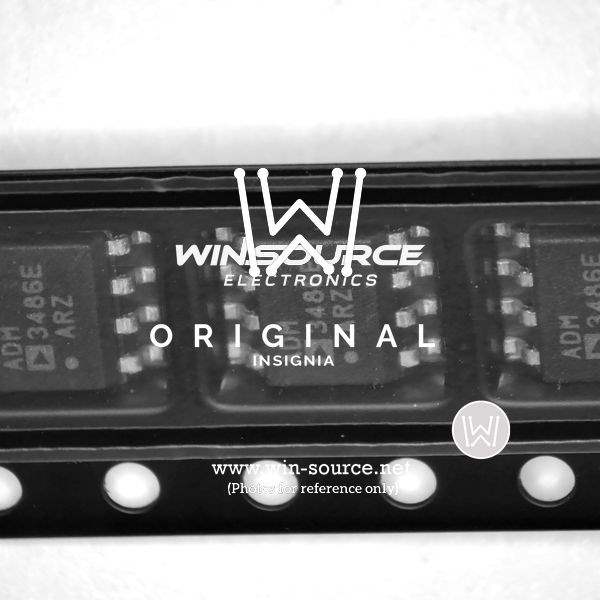

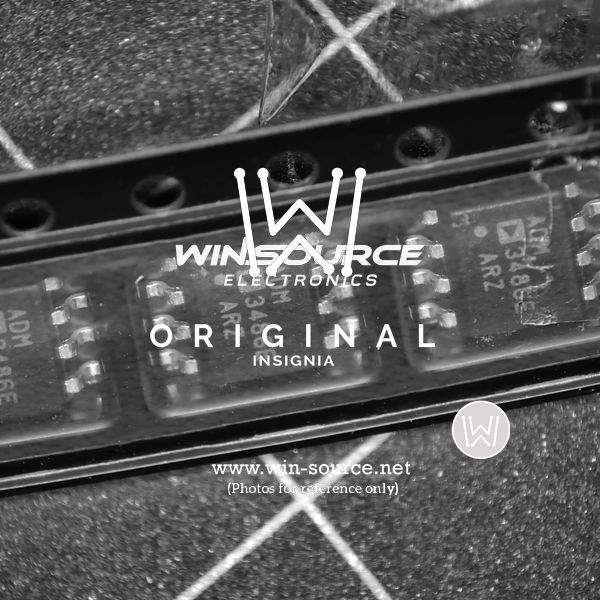

The ADM3486EARZ is a robust, low power, differential line transceiver from Analog Devices Inc., designed to operate using the RS-485 and RS-422 standards. This device offers half-duplex communication and is capable of achieving data rates up to 3.3 Mbps. With its extended temperature range and ESD protection, it is an ideal choice for demanding industrial applications where reliable data transmission is a must.

Key Features

• High-Speed Operation: Capable of transmitting data at speeds up to 3.3 Mbps, making it suitable for high-speed serial communication applications.
• Low Power Consumption: Designed for power-sensitive applications, this device operates with a low quiescent current, which is beneficial in portable or remote systems.
• Extended Temperature Range: With an operating temperature range of -40°C to +85°C, the ADM3486EARZ is reliable in extreme environmental conditions.
• ESD Protection: Features ESD protection on the RS-485 input/output pins, safeguarding against electrostatic discharge events.
• Thermal Shutdown Protection: Includes a thermal shutdown feature that protects the device from overheating.
• Half-Duplex Communication: Supports half-duplex communication, allowing for bidirectional communication over a single pair of wires.
• Industry-Standard Compliance: Meets the requirements for RS-485 and RS-422 standards, ensuring compatibility with a wide range of industrial communication systems.
• RoHS Compliant: Manufactured in compliance with RoHS standards, minimizing the environmental impact by restricting the use of certain hazardous substances.

Applications

The ADM3486EARZ is particularly well-suited for industrial environments where reliable data transmission is critical. Applications include, but are not limited to, factory automation, process control systems, HVAC systems, data acquisition systems, and point-of-sale terminals. Its robust design also makes it an excellent choice for use in networked devices within building automation and security systems.

With its combination of high-speed data transmission, low power consumption, and strong protective features, the ADM3486EARZ from Analog Devices Inc. stands out as a high-performance solution for any RS-485/RS-422 communication needs.
